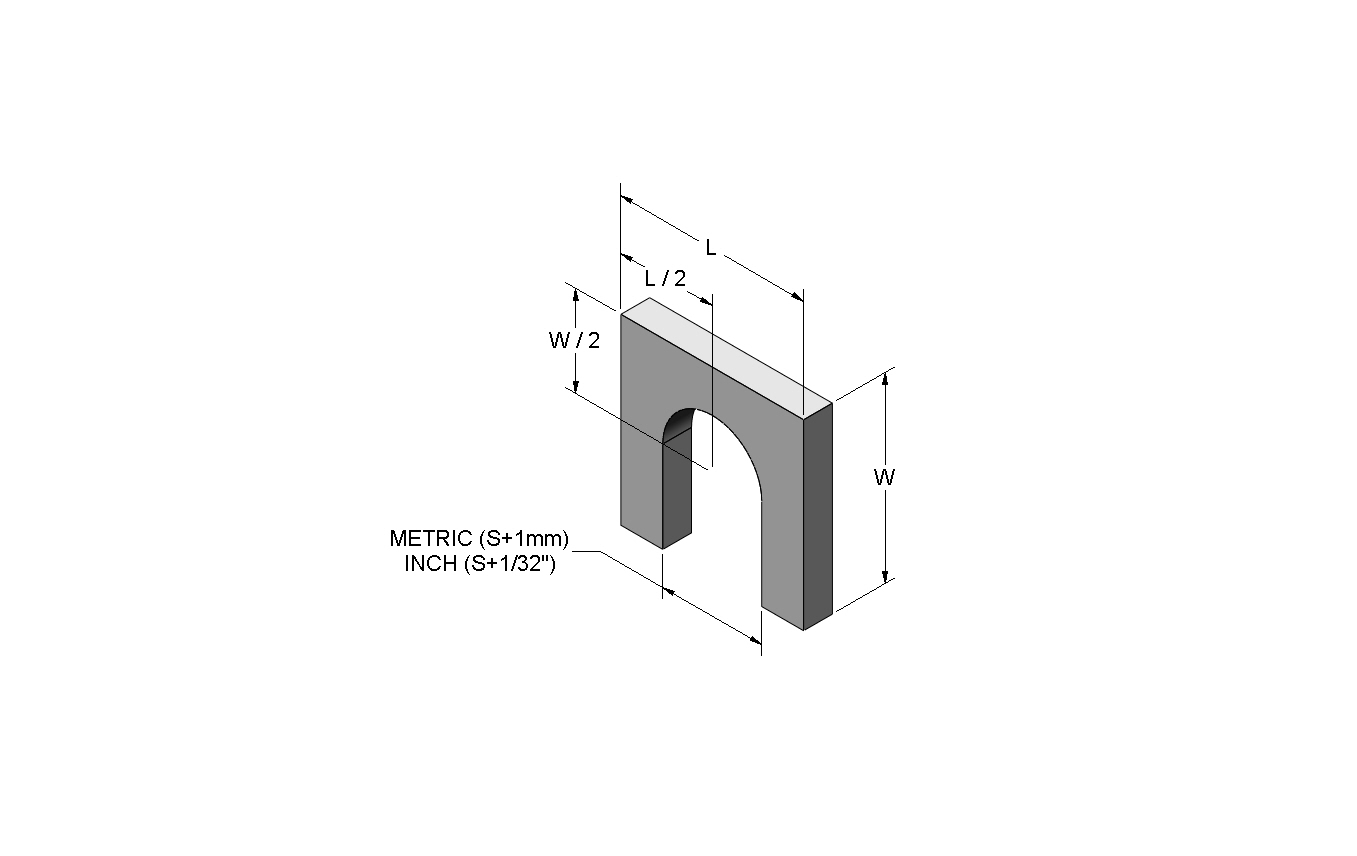

Style 18
Width defined
How to order — R[Material]18-[S]-[L]-[W]-[Thickness]
*see bottom of page for material and thickness choices
| Metric | ||||
|---|---|---|---|---|
| Minimum | Maximum | Increments | ||
| Screw size | S | 1.6mm | 24mm | |
| Length | L | S * 2 | 292mm | 1mm |
| Width | W | S * 2 | 290mm | 1mm |
| Inch | ||||
| Minimum | Maximum | Increments | ||
| Screw size | S | #6 | 1″ | |
| Length | L | S * 2 | 11.500″ | 1/16″ |
| Width | W | S * 2 | 11.500″ | 1/16″ |
| Individual shim number example | Shim pack number example | |||
|---|---|---|---|---|
| RM18-250-500-500-1A | RS18-M6-M12-M12-2A3B2C1D | |||
Style 23
Screw defined
How to order — R[Material]23-[S]-[L]-[W]-[Thickness]
*see bottom of page for material and thickness choices
| Metric | ||||
|---|---|---|---|---|
| Minimum | Maximum | Increments | ||
| Screw size | S | 1.6mm | 24mm | |
| Length | L | S * 2 | 292mm | 1mm |
| Width | W | S * 2 | 290mm | 1mm |
| Inch | ||||
| Minimum | Maximum | Increments | ||
| Screw size | S | #6 | 1″ | |
| Length | L | S * 2 | 11.500″ | 1/16″ |
| Width | W | S * 2 | 11.500″ | 1/16″ |
| Individual shim number example | Shim pack number example | |||
|---|---|---|---|---|
| RM23-250-500-500-1A | RS23-M6-M12-M12-2A3B2C1D | |||
Style 41
User defined
How to order — R[Material]41-[D1]-[D2]-[D3]-[D4]-[D6]-[Thickness]
*see bottom of page for material and thickness choices
| Metric | ||||
|---|---|---|---|---|
| Minimum | Maximum | Increments | ||
| Length | D1 | Maximum length 292mm | .01 | |
| Width | D2 | Maximum width 292mm | .01 | |
| Hole Size | D3 | Minimum of 2X Shim Stock Thickness Between All Shim Features & Edges | .01 | |
| Hole Loc. | D4 | .01 | ||
| Hole Loc. | D6 | .01 | ||
| Inch | ||||
| Minimum | Maximum | Increments | ||
| Length | D1 | Maximum length 11.500″ | .001″ | |
| Width | D2 | Maximum width 11.500″ | .001″ | |
| Hole Size | D3 | Minimum of 2X Shim Stock Thickness Between All Shim Features & Edges | .001″ | |
| Hole Loc. | D4 | .001″ | ||
| Hole Loc. | D6 | .001″ | ||
| Individual shim number example | Shim pack number example | ||||
|---|---|---|---|---|---|
| RM41-750-1000-250-250-250-1A | RS41-M20-M25-M6-M6-M6-2A3B2C1D |
Material choices S & M
- S – 300 series stainless steel – plain
- M – 1010 full hard steel – oiled, non-plated
| Letter | A | B | C | D | E | J | K | L |
| Nominal | 1/8 mm | 1/4 mm | 1/2 mm | 1 mm | 2 mm | 1/64″ | 1/32″ | 1/16″ |
| 1010 Full Hard (oiled, not plated) | ||||||||
| Actual | .005″ | .010″ | .020″ | .040″ | .079″ | .015″ | .031″ | .062″ |
| Tolerance | ± .0005 | ± .00075 | ± .003 | ± .0004 | ± .005 | ± .002 | ± .0015 | ± .005 |
| 300 Series Stainless Steel (could be slightly magnetic) | ||||||||
| Actual | .005″ | .010″ | .020″ | .042″ | .075″ | .015″ | .031″ | .060″ |
| Tolerance | A | B | C | D | E | J | K | L |
RM18-#10-1000-380-2B2C2D1E, RM18-#10-875-1500-1L, RM18-#8-625-625-2J2(.035″)2L, RM18-#8-625-625-2J2K2L, RM18-250-1000-1000-2J4(.035″)4L, RM18-250-1000-1000-2J4K4L, RM18-250-1500-500-2B1C2D1E, RM18-250-1500-750-1C, RM18-250-1500-750-1L, RM18-250-3000-500-2B1C2D1E, RM18-250-500-500-1A11B1C, RM18-250-625-625-2B2C2D1E, RM18-250-625-625-4A5B2C1D, RM18-250-750-750-1A1B1C1D1E1J1K1L, RM18-312-1000-1000-25A25B25C40J25K, RM18-312-750-1000-2J3(.035″)2L, RM18-312-750-1000-2J3K2L, RM18-375-1250-1000-2J2K2L, RM18-375-2250-875-2A3B2C1D, RM18-438-1000-1000-1L, RM18-500-2000-2000-8A8B8C8D12E, RM18-M10-M25-M25-10A20B4C, RM18-M10-M25-M25-1C, RM18-M10-M25-M25-1D, RM18-M10-M25-M25-2C2D, RM18-M10-M25-M50-2C1D3E, RM18-M10-M30-M60-2A3B2C2D2E, RM18-M10-M41-M41-1C3E, RM18-M8-M75-M20-2A3B2C1D, RS18-375-1000-1000-10A10B10C10D10E10J10K10L, RS18-375-1500-1500-2A3B2C1D, RS18-375-2000-1250-2A3B2C1D, RS18-625-1750-1750-3C2D1E, RS18-6-40-15-2B2C3D1E, RS18-750-2500-2500-3C2D1E, RS18-M10-M20-M20-2A3B2C1D, RS18-M10-M25-M25-2A3B2C1D, RS18-M10-M38-M51-2A3B2C1D, RS18-M10-M40-M20-2A3B2C1D, RS18-M10-M50-M50-2A3B2C1D, RS18-M10-M52-M35-2A3B2C1D, RS18-M12-M35-M38-60A, RS18-M12-M40-M36-2A3B2C1D, RS18-M12-M40-M80-2A3B2C1D, RS18-M20-M40-M50-2A3B2C1D, RS18-M24-M75-M70-2A3B2C1D, RS18-M6-M12-M12-2A3B2C1D, RS18-M6-M12-M12-2C2D, RS18-M6-M12-M15-2A3B2C3D, RS18-M6-M12-M15-4C3D, RS18-M6-M15-M15-2A3B2C3D, RS18-M6-M16-M16-2A3B2C1D, RS18-M6-M16-M16-2B1C2D, RS18-M6-M18-M35-2A3B2C1D, RS18-M6-M18-M45-2A3B2C1D, RS18-M6-M19-M19-2A3B2C1D, RS18-M6-M20-M15-2A3B2C1D, RS18-M6-M40-M15-2B2C, RS18-M6-M40-M15-2B2C3D1E, RS18-M6-M42-M16-2B1C2D, RS18-M6-M50-M12-2A3B2C1D, RS18-M6-M80-M15-2B2C, RS18-M6-M80-M15-2B2C3D1E, RS18-M8-M18-M18-2A3B2C1D, RS18-M8-M18-M20-2A3B2C1D, RS18-M8-M19-M16-2A3B2C1D, RS18-M8-M19-M19-2A3B2C1D, RS18-M8-M19-M25-2A3B2C1D, RS18-M8-M20-M16-2A3B2C1D, RS18-M8-M20-M20-2A3B2C1D, RS18-M8-M20-M20-4A6B4C6D, RS18-M8-M35-M75-1K1L, RM23-#10-1125-1125-20A20B20C20D, RM23-#10-380-1000-15A15B8C4D, RM23-#10-380-1125-20A20B20C20D, RM23-#10-380-1125-30A30B30C30D, RM23-#10-438-1250-10A10B10C5D5E, RM23-#10-500-500-40A40B40C, RM23-#10-500-562-2B2C2D1E, RM23-#10-688-500-60A60B60C30D30E, RM23-#10-750-1000-10A10B20C5D10E, RM23-#10-750-1625-20A20B20C10D10E, RM23-#10-750-500-60A60B60C30D30E, RM23-#10-875-1125-1C2D2E, RM23-#8-328-625-20A20B10C10D10E, RM23-#8-438-625-60A60B120C20D20E, RM23-#8-438-625-60A60B20C20D20E, RM23-#8-625-328-10A10B20C5D5E, RM23-250-1000-2500-1B, RM23-250-1000-2500-1C, RM23-250-1000-750-20A20B20E, RM23-250-2000-1000-4A4B4C4D4E4J4K4L, RM23-250-500-1312-20A20B10C, RM23-250-500-2250-20A20B10C, RM23-250-500-2250-20A20C20D, RM23-250-500-500-1A, RM23-250-500-500-2A3B2C1D, RM23-250-500-750-1E, RM23-250-500-750-5A5B5C2D1E, RM23-250-688-1562-20A20B20C20D, RM23-312-1000-1500-2B1C1D, RM23-312-1000-2000-2B1C1D, RM23-312-1250-3438-20A10B20C10D10E, RM23-312-1750-1125-2A2B1K1L, RM23-312-1750-1125-2A3B2C1D, RM23-312-1750-1125-4A6B4C2D, RM23-312-2000-750-2A4B2K2L, RM23-312-2000-750-2B1C2D, RM23-312-2000-750-2B2C1L, RM23-312-2000-750-4C1D, RM23-312-2000-750-5C, RM23-312-875-1500-1C2D2E, RM23-312-875-1500-2C2D2E, RM23-375-1000-2000-4B4C3D2E, RM23-375-1000-3000-2B1C2D, RM23-375-1500-750-2B1C2D, RM23-438-2250-875-2A3B2C1D, RM23-500-1500-6500-1E, RM23-625-2500-2000-4J2K, RM23-M10-M25-M38-2C4D4E, RM23-M10-M25-M62-2B1C2D1E, RM23-M10-M25-M65-2C2D, RM23-M10-M25-M65-50B50C50D50E, RM23-M12-M24-M24-2C2D, RM23-M12-M24-M30-8B4C1D, RM23-M15-M32-M152-1A, RM23-M15-M32-M152-1A1B1C1D, RM23-M15-M32-M152-1B, RM23-M15-M32-M152-1C, RM23-M15-M32-M152-1D, RM23-M24-M120-M73-1C2D2E, RM23-M4-M8-M51-2A3B2C3D, RM23-M5-M12-M19-2B4C3D, RM23-M5-M12-M19-4B4C, RM23-M6-M12-M40-2B1C2D1E, RM23-M6-M12-M70-50B50C50D, RM23-M6-M40-M12-2A3B2C3D, RM23-M8-M16-M145-2C, RM23-M8-M16-M16-2B1C2D1E, RM23-M8-M16-M70-50B50C50D, RM23-M8-M19-M19-4B4C2D, RM23-M8-M25-M38-2C4D4E, RM23-M8-M44-M20-2B1C2D1E, RS23-250-1000-2000-2A3B2C1D, RS23-250-1750-1000-2A2B1C3L, RS23-250-625-1688-2A3B2C1D, RS23-250-750-3500-2A3B2C1D, RS23-312-1000-1750-2A3B2C1D, RS23-312-625-1125-2A3B2C1D, RS23-312-625-1375-2A3B2C1D, RS23-312-625-1875-2A3B2C1D, RS23-375-1000-3375-2A3B2C1D, RS23-375-1500-2500-2A3B2C3D, RS23-375-2000-3000-2A3B2C1D, RS23-375-750-1625-2A3B2C1D, RS23-375-750-1625-2A3B2C3D, RS23-375-750-4500-2A3B2C1D, RS23-500-1750-1000-2A2B1C3L, RS23-6-22-41-2A3B2C1D, RS23-8-16-26-2A3B2C3D, RS23-M10-M20-M20-3A2B1C1J, RS23-M10-M24-M145-2A3B2C1D, RS23-M10-M25-M65-2A3B2C1D, RS23-M10-M30-M55-2A3B2C1D, RS23-M10-M35-M75-10A20B20C20D16E, RS23-M10-M35-M75-2A3B2C3D, RS23-M10-M36-M146-2A3B2C1D, RS23-M10-M36-M188-2A3B2C1D, RS23-M10-M40-M45-2A3B2C1D, RS23-M10-M50-M26-2A3B2C1D, RS23-M10-M50-M45-2A3B2C1D, RS23-M12-M24-M24-1B, RS23-M12-M24-M24-1C, RS23-M12-M24-M24-1D, RS23-M12-M24-M24-1E, RS23-M12-M24-M24-2B1C2D, RS23-M12-M24-M30-8B4C1D, RS23-M12-M38-M58-2A3B2C1D, RS23-M15-M32-M152-1A, RS23-M15-M32-M152-1A1B1C1D, RS23-M15-M32-M152-1B, RS23-M15-M32-M152-1C, RS23-M15-M32-M152-1D, RS23-M16-M50-M65-2C2D1E, RS23-M16-M75-M150-2C2D1E, RS23-M3-M9-M12-2A3B2C1D, RS23-M4-M12-M16-2A3B1C, RS23-M4-M12-M35-2A3B2C1D, RS23-M5-M12-M40-2A3B2C1D, RS23-M5-M20-M16-2C2D, RS23-M5-M20-M87-2A3B2C1D, RS23-M5-M50-M11-2A3B2C1D, RS23-M6-M12-M19-4C3D, RS23-M6-M12-M22-2A3B2C1D, RS23-M6-M12-M24-2A3B2C1D, RS23-M6-M12-M25-2A3B2C1D, RS23-M6-M12-M29-2A3B2C1D, RS23-M6-M12-M30-2A3B2C1D, RS23-M6-M12-M36-2C2D, RS23-M6-M12-M40-2A3B2C1D, RS23-M6-M13-M30-2A3B2C1D, RS23-M6-M14-M21-2A3B2C1D, RS23-M6-M14-M32-2A3B2C1D, RS23-M6-M15-M13-4C3D, RS23-M6-M15-M16-2A3B2C1D, RS23-M6-M15-M30-2A3B2C1D, RS23-M6-M15-M35-2A3B2C1D, RS23-M6-M15-M37-2A3B2C1D, RS23-M6-M15-M40-2A3B2C1D, RS23-M6-M15-M41-2A3B2C3D, RS23-M6-M15-M44-2A3B2C1D, RS23-M6-M15-M70-2A3B2C1D, RS23-M6-M16-M100-2A3B2C1D, RS23-M6-M16-M13-2C2D, RS23-M6-M16-M16-2A3B2C1D, RS23-M6-M16-M25-2A3B2C1D, RS23-M6-M16-M25-4C3D, RS23-M6-M16-M30-2A3B2C1D, RS23-M6-M16-M32-2A3B2C1D, RS23-M6-M16-M32-2C2D, RS23-M6-M16-M35-2A3B2C1D, RS23-M6-M16-M42-2A3B2C1D, RS23-M6-M16-M42-2C2D, RS23-M6-M16-M43-2A3B2C1D, RS23-M6-M16-M43-2C2D, RS23-M6-M16-M44-2A3B2C1D, RS23-M6-M16-M45-2A3B2C1D, RS23-M6-M16-M61-2A3B2C3D, RS23-M6-M16-M61-2C2D1E, RS23-M6-M18-M24-2A3B2C1D, RS23-M6-M18-M50-2A3B2C1D, RS23-M6-M20-M35-2A3B2C1D, RS23-M6-M20-M50-2A3B2C1D, RS23-M6-M20-M60-2A3B2C1D, RS23-M6-M22-M17-2A3B2C1D, RS23-M6-M22-M40-2A3B2C1D, RS23-M6-M22-M46-2A3B2C1D, RS23-M6-M24-M102-2A3B2C1D, RS23-M6-M24-M28-2A3B2C, RS23-M6-M25-M25-2A3B2C1D, RS23-M6-M28-M16-2A3B2C3D, RS23-M8-M16-M25-2A3B2C3D, RS23-M8-M16-M26-2A3B2C, RS23-M8-M16-M26-2A3B2C3D, RS23-M8-M16-M26-2C2D1E, RS23-M8-M16-M26-2C4D, RS23-M8-M16-M32-2A3B2C1D, RS23-M8-M16-M35-2A3B2C1D, RS23-M8-M16-M38-1E, RS23-M8-M16-M38-2A3B2C1D, RS23-M8-M16-M38-2B1C2D, RS23-M8-M16-M40-2A3B2C1D, RS23-M8-M16-M41-2A3B2C1D, RS23-M8-M16-M42-2A3B2C1D, RS23-M8-M16-M42-2A3B2C3D, RS23-M8-M16-M45-2A3B2C1D, RS23-M8-M16-M50-2A3B2C1D, RS23-M8-M16-M52-2A3B2C1D, RS23-M8-M16-M52-2A3B2C3D, RS23-M8-M16-M65-2A3B2C1D, RS23-M8-M16-M70-2A3B2C1D, RS23-M8-M17-M40-2A3B2C1D, RS23-M8-M18-M32-2A3B2C1D, RS23-M8-M18-M35-2A3B2C1D, RS23-M8-M18-M50-2A3B2C1D, RS23-M8-M19-M36-2A3B2C1D, RS23-M8-M19-M40-2A3B2C3D, RS23-M8-M19-M44-2A3B2C1D, RS23-M8-M19-M45-2A3B2C1D, RS23-M8-M19-M48-2A3B2C1D, RS23-M8-M19-M50-2A3B2C1D, RS23-M8-M19-M60-2A3B2C1D, RS23-M8-M19-M75-2A3B2C1D, RS23-M8-M20-M156-2A1B, RS23-M8-M20-M20-2A3B2C1D, RS23-M8-M20-M32-2C2D, RS23-M8-M20-M38-2A3B2C1D, RS23-M8-M20-M38-2A3B2C3D, RS23-M8-M20-M40-2A3B2C, RS23-M8-M20-M40-2A3B2C3D, RS23-M8-M20-M41-2A3B2C1D, RS23-M8-M20-M45-2A3B2C1D, RS23-M8-M20-M45-2C2D, RS23-M8-M20-M48-2A3B2C1D, RS23-M8-M20-M50-2A3B2C1D, RS23-M8-M20-M56-2A3B2C1D, RS23-M8-M20-M60-2A3B2C1D, RS23-M8-M21-M85-2A3B2C1D, RS23-M8-M22-M43-2A3B2C1D, RS23-M8-M22-M48-2A3B2C1D, RS23-M8-M22-M60-2A3B2C1D, RS23-M8-M24-M102-2A3B2C1D, RS23-M8-M24-M32-2A3B2C1D, RS23-M8-M24-M38-2A3B2C1D, RS23-M8-M24-M45-2A3B2C3D, RS23-M8-M24-M46-2A3B2C1D, RS23-M8-M24-M50-2A3B2C1D, RS23-M8-M24-M51-2A3B2C1D, RS23-M8-M24-M55-2A3B2C1D, RS23-M8-M24-M76-2A3B2C3D, RS23-M8-M25-M30-2A3B2C1D, RS23-M8-M25-M50-2A3B2C1D, RS23-M8-M25-M50-2C1D3E, RS23-M8-M25-M60-2A3B2C1D, RS23-M8-M25-M60-2A3B2C3D, RS23-M8-M25-M64-2A3B2C3D, RS23-M8-M25-M65-2A3B2C1D, RS23-M8-M25-M66-2A3B2C, RS23-M8-M25-M66-2A3B2C1D, RS23-M8-M25-M66-2C4D, RS23-M8-M25-M70-2A3B2C1D, RS23-M8-M25-M75-2A3B2C1D, RS23-M8-M26-M100-2A3B2C1D, RS23-M8-M28-M136-2A3B2C1D, RS23-M8-M30-M60-2A3B2C2D2E, RS23-M8-M35-M39-2A3B2C1D, RS23-M8-M35-M75-1K1L, RS23-M8-M70-M65-2A3B2C1D, RS23-M8-M76-M95-2A3B2C, RM41-1000-1000-221-250-250-2A3B2C1D, RM41-1000-1000-221-250-250-2D, RM41-1000-1000-330-500-500-1A1B1C1J1(.035″), RM41-1000-1750-281-531-500-2A3B2C1D, RM41-1000-2000-281-500-500-10A10B10J10K10L, RM41-1000-2000-281-500-500-10A25B25J25K10L, RM41-1000-2000-344-250-500-2B1C2D1E, RM41-1000-2000-406-375-500-2A3B2C1D, RM41-1000-2000-406-375-500-3A2B3C3D, RM41-1000-2250-281-1031-500-2A3B2C1D, RM41-1000-2250-386-1125-500-2A1B2C1D, RM41-1000-2250-390-500-500-2A1B2C1D, RM41-1000-2375-276-625-500-4B4C2D, RM41-1000-2375-344-375-500-2A3B2C1D, RM41-1000-2375-344-375-500-2D, RM41-1000-2500-350-625-500-2A2J2K2L, RM41-1000-2500-375-375-500-3E2J2(.035″)1L, RM41-1000-2500-375-375-500-3E2J2K1L, RM41-1000-2500-406-375-500-2B1C2D1E, RM41-1000-3000-406-375-500-2A3B2C1D, RM41-1000-3000-531-500-500-2K3L, RM41-1000-3500-410-375-500-1C2D2E, RM41-1000-3750-344-375-500-2B1C2D, RM41-1000-4000-375-625-500-4B2C1D, RM41-1000-5500-354-750-500-4B4C2D, RM41-1000-563-281-313-500-8B4C1D, RM41-1125-1000-344-250-563-2A3B2C1D, RM41-1150-925-625-550-450-4A2B4C, RM41-1150-925-625-550-450-4A6B4C2D, RM41-1250-1000-281-500-625-2A3B2C1D, RM41-1250-1250-344-313-625-2A3B2C1D, RM41-1250-2625-438-375-625-4J2K, RM41-1250-563-266-250-625-2A3B2C1D, RM41-1250-6000-688-1000-625-1K, RM41-1250-6000-688-1000-625-2L, RM41-1250-750-281-250-625-2A3B2C1D, RM41-1250-750-344-375-625-2J3K, RM41-1250-870-281-370-625-2A3B2C1D, RM41-1250-870-281-370-625-2D, RM41-1375-1000-281-500-688-2A3B2C1D, RM41-1375-1250-281-313-688-6C, RM41-1375-2875-406-438-688-2A3B2C1D, RM41-1375-2875-406-813-688-2A3B2C1D, RM41-1500-1000-281-500-750-2A3B2C1D, RM41-1500-1000-390-500-750-2A1B2C1D, RM41-1500-1000-406-500-750-2A3B2C1D, RM41-1500-1000-406-500-750-2B1C2D, RM41-1500-1250-344-312-313-2A3B2C1D, RM41-1500-1250-344-312-313-2D, RM41-1500-1500-350-255-750-4A5J1K2L, RM41-1500-2375-290-875-750-2J1K4L, RM41-1500-3600-520-720-750-2A1B2C1D, RM41-1500-750-281-250-750-2A3B2C1D, RM41-1500-750-281-375-750-2A3B2C1D, RM41-1500-750-281-375-750-2D, RM41-1625-750-344-308-813-2A3B2C1D, RM41-1625-813-344-406-813-2A3B2C1D, RM41-1625-875-344-308-813-2A3B2C1D, RM41-1625-875-344-313-813-2A3B2C1D, RM41-1750-1000-406-375-875-2B5C3D, RM41-1750-1250-406-625-875-2C1D2E, RM41-1750-1500-406-375-875-2A3B2C1D, RM41-1750-2750-625-500-875-2B1C2D, RM41-1750-3000-406-625-375-2A3B2C1D, RM41-1750-748-406-284-875-3A1J1K1L, RM41-1750-784-406-284-875-3A1J1K1L, RM41-1875-1125-344-563-938-2A3B2C1D, RM41-1875-1875-406-438-938-2A3B2C1D, RM41-1875-2125-406-438-438-2A3B2C1D, RM41-1875-2875-406-438-938-2A3B2C1D, RM41-1875-750-344-313-938-2A3B2C1D, RM41-1875-750-344-313-938-2D, RM41-1875-870-344-308-938-2A3B2C1D, RM41-1875-870-344-308-938-2D, RM41-1875-875-344-313-938-2A3B2C1D, RM41-2000-1000-406-375-1000-2A3B2C1D, RM41-2000-1250-406-625-1000-2A3B2C1D, RM41-2000-1750-433-735-1000-2A3B2C1D, RM41-2000-1750-531-750-1000-1C2D2E, RM41-2000-1750-531-750-1000-48C48D48E, RM41-2000-3000-344-750-1000-4B4C2D, RM41-2000-3750-354-875-1000-4B4C2D, RM41-2000-625-375-313-1000-5A2B2C1D, RM41-2125-5422-1000-1422-1063-10L, RM41-2125-5422-1000-1422-1063-3J2(.035″)5L, RM41-2125-5422-1000-1422-1063-3J2(.035″)7L, RM41-2125-5422-1000-1422-1063-3J2K15L, RM41-2125-5422-1000-1422-1063-3J2K7L, RM41-2250-1250-344-625-1125-2A3B2C1D, RM41-2250-1250-400-625-1125-2A3B2C1D, RM41-2250-875-375-438-1406-2A3B2C1D, RM41-2375-1500-600-750-775-4A6B4C2D, RM41-2500-5750-530-375-1250-2B1C2D1E, RM41-2500-700-400-380-1000-4A6B4C2D, RM41-2500-750-375-400-1750-4A6B4C2D, RM41-25-25-11-12.5-12.5-8A4B2C2D, RM41-2750-2750-406-375-500-2A3B2C1D, RM41-2750-2750-750-1000-1375-1B1C1D1E, RM41-3000-2750-1400-1250-1500-1B1C1D1E, RM41-3000-720-472-375-1500-2C1D1E, RM41-3250-1000-344-500-1625-2B5C3D, RM41-3250-3625-344-313-1625-2B5C3D, RM41-3250-4750-406-1375-750-6C, RM41-3500-4000-2130-1380-2000-1A2B1C2D1E, RM41-4000-1250-281-250-1875-6C, RM41-4000-2500-344-750-1000-2A3B2C1D, RM41-4000-2500-344-750-1000-2D, RM41-4000-5500-500-500-2000-2E2J2(.035″)2L, RM41-438-1250-221-250-219-2A3B2C1D, RM41-4500-2250-406-500-1875-2A3B2C1D, RM41-468-750-266-375-234-4B2C1D, RM41-483-1250-221-250-219-2A3B2C1D, RM41-500-1000-281-250-250-2A3B2C1D, RM41-500-1250-220-250-250-4B4C2D, RM41-500-1500-281-250-250-2A3B2C1D, RM41-500-500-340-250-250-2B1C2D1E, RM41-500-875-221-250-250-2A3B2C1D, RM41-500-875-221-250-250-2D, RM41-5255-2000-344-375-750-2A3B2C1D, RM41-5255-2000-344-375-750-2D, RM41-5500-1875-344-500-2750-2A3B2C1D, RM41-5500-5000-434-3125-500-4B2C1D, RM41-560-1500-328-313-280-2A3B2C1D, RM41-5625-2250-406-500-2750-2A3B2C1D, RM41-5625-2500-281-500-2875-2A3B2C1D, RM41-5625-2500-281-500-2875-2D, RM41-625-1000-266-214-313-2B1C2D1E, RM41-625-1000-281-250-313-2A3B2C1D, RM41-625-1000-281-250-313-2D, RM41-625-625-281-312-312-4B2C1D, RM41-625-625-375-313-313-2B1C2D, RM41-625-875-281-313-313-8B4C1D, RM41-630-1300-220-450-190-4A2B4C, RM41-630-1300-220-450-190-4A6B4C2D, RM41-6755-2250-406-500-4313-2A3B2C1D, RM41-688-1250-260-313-344-4B4C2D, RM41-7000-4000-344-1000-3500-2A3B2C1D, RM41-7000-4000-344-1000-3500-2D, RM41-7125-1750-281-375-3130-2A3B2C1D, RM41-7125-1750-281-375-3130-2D, RM41-7125-2000-281-375-3130-2A3B2C1D, RM41-7125-2000-281-375-3130-2D, RM41-7250-2250-406-500-2875-2A3B2C1D, RM41-734-1250-266-250-367-4B2C1D, RM41-750-1000-250-250-250-1A1B1C1D1E1J1K1L, RM41-750-1000-250-250-375-2A3B2C1D, RM41-750-1000-281-500-375-20A, RM41-750-1000-281-500-375-20A10B, RM41-750-1000-281-500-375-2C2D, RM41-750-1000-281-500-375-30B, RM41-750-1000-281-500-375-60A, RM41-750-1250-346-375-375-2A3B2C1D, RM41-750-1500-281-375-375-2A3B2C1D, RM41-750-1500-281-570-375-2A3B2C1D, RM41-750-1500-281-570-375-2D, RM41-750-1500-406-375-375-2A3B2C1D, RM41-750-1500-406-375-375-2C1D2E, RM41-750-1688-281-656-375-4B2C1D, RM41-750-1750-344-281-375-1A, RM41-750-1750-344-281-375-1B, RM41-750-1750-344-281-375-1C, RM41-750-1750-344-281-375-1D, RM41-750-1750-375-250-375-1A, RM41-750-1750-375-250-375-1B, RM41-750-1750-375-250-375-1C, RM41-750-1750-375-250-375-1D, RM41-750-2250-320-250-380-2A1B2C1D, RM41-750-2500-320-250-380-2A1B2C1D, RM41-750-2750-344-375-375-2B1C2D, RM41-750-3000-406-375-375-2A3B2C1D, RM41-750-3500-344-375-375-2B1C2D, RM41-750-3500-406-438-375-2B2C1E, RM41-750-4000-500-500-750-2B1C2D, RM41-750-750-340-380-375-4B2C3D, RM41-800-1000-250-297-297-4C1D1E, RM41-8125-2250-406-1125-4125-2A3B2C1D, RM41-900-1000-281-250-284-2A3B2C1D, RM41-900-1000-281-250-284-2A3B3C2D, RM41-900-1000-281-250-284-2D, RM41-938-750-344-375-469-4B2C1D, RM41-9625-1750-406-375-4375-1A, RM41-9625-1750-406-375-4375-2A3B2C1D, RM41-M100-M45-M20-M22-M50-2C3D3E, RM41-M100-M45-M20-M22-M50-4C4D4E, RM41-M101.6-M38.1-M30-M19.5-M50.8-1C2D2E, RM41-M101.6-M38.1-M30-M19.5-M50.8-4C4D4E, RM41-M101.6-M45-M18-M20-M50-1C2D2E, RM41-M101.6-M45-M18-M20-M50-4C4D4E, RM41-M101.6-M45-M18-M20-M50-8C8D8E, RM41-M10-M42-M5.8-M10-M5-4B4C2D, RM41-M114-M292-M31.8-M76.2-M57.2-5A2B2C1D1E, RM41-M120-M120-M25-M50-M60-1C2D2E, RM41-M120-M120-M25-M50-M60-2C2D2E, RM41-M120-M120-M25-M50-M60-4C4D4E, RM41-M120-M120-M40-M60-M60-2L, RM41-M12-M42-M5.8-M10-M5-4B4C2D, RM41-M135-M90-M40-M40-M67.5-1C2D2E, RM41-M135-M90-M40-M40-M67.5-2C2D2E, RM41-M14-M20-M7-M9-M7-2A3B2C1D, RM41-M14-M42-M7-M6-M6-2B1C2D1E, RM41-M15-M12-M5-M6-M7.5-2C2D, RM41-M18-M18-M6.6-M9-M9-4B2C1D, RM41-M18-M18-M6.8-M9-M9-4B2C1D, RM41-M19.5-M120-M10-M30-M9.75-1D, RM41-M20-M20-M10.5-M10-M10-2A3B2C1D, RM41-M20-M30-M9-M8-M10-2B1C2D, RM41-M20-M40-M6.5-M10-M10-2A3B2C1D1E, RM41-M20-M40-M6.5-M10-M10-3A3B2C1D1E, RM41-M20-M44-M8.5-M7-M10-4B4C2D, RM41-M20-M60-M9.5-M10-M10-10A10B, RM41-M20-M60-M9-M10-M10-10A10B10C6D, RM41-M20-M60-M9-M9.5-M10-2C2D, RM41-M20-M60-M9-M9.5-M10-6C2D, RM41-M22-M40-M10.5-M8-M11-2C2D, RM41-M24.2-M44.5-M15-M25.1-M12.1-4K2L, RM41-M25.4-M100-M11-M10-M12.7-2B1C2D, RM41-M25.4-M152.4-M11-M12.7-M12.7-1C2D2E, RM41-M25.4-M25.4-M9-M12.7-M12-1A1B2C2D2E, RM41-M25.4-M57.2-M13-M12.7-M12.7-1C2D2E, RM41-M25-M15-M6.5-M7.5-M12.5-2B1C2D, RM41-M25-M22-M7-M10-M12.5-4A6B4C2D, RM41-M25-M25-M11-M12.5-M12.5-1A, RM41-M25-M25-M11-M12.5-M12.5-1B, RM41-M25-M25-M11-M12.5-M12.5-1C, RM41-M25-M25-M11-M12.5-M12.5-1D, RM41-M25-M25-M11-M12.5-M12.5-1E, RM41-M25-M25-M11-M12.5-M12.5-20A, RM41-M25-M25-M11-M12.5-M12.5-20A16B12C, RM41-M25-M25-M11-M12.5-M12.5-2C2D, RM41-M25-M25-M11-M12.5-M12.5-30B, RM41-M25-M25-M11-M12.5-M12.5-4B2C1D, RM41-M25-M25-M11-M12.5-M12.5-4B2C1D1E, RM41-M25-M25-M11-M12.5-M12.5-4B4C2D, RM41-M25-M25-M11-M12.5-M12.5-60A, RM41-M25-M25-M11-M12.5-M12.5-8A4B2C2D, RM41-M25-M45-M9-M10-M12.5-2A3B2C1D, RM41-M25-M50.8-M11-M10.4-M12.5-1C2D2E, RM41-M25-M50.8-M11-M10.4-M12.5-2C2D2E, RM41-M25-M50-M8.5-M20-M12.5-2B1C2D, RM41-M25-M50-M8-M20-M12.5-2B1C2D, RM41-M25-M60-M11-M13.2-M12.5-2B1C2D, RM41-M25-M70-M11-M12.5-M12.5-1A, RM41-M25-M70-M11-M12.5-M12.5-1B, RM41-M25-M70-M11-M12.5-M12.5-1C, RM41-M25-M70-M11-M12.5-M12.5-1D, RM41-M25-M70-M11-M12.5-M12.5-1E, RM41-M25-M70-M11-M12.5-M12.5-2C2D, RM41-M25-M70-M11-M12.5-M12.5-4B2C1D, RM41-M25-M70-M11-M12.5-M12.5-4B4C2D, RM41-M25-M70-M11-M12.5-M12.5-8A4B2C2D, RM41-M25-M75-M9-M15-M12.5-2A3B2C1D, RM41-M25-M85-M11-M26-M12.5-2B1C2D, RM41-M26-M90-M14-M65-M13-2B2C2D3E, RM41-M26-M90-M7-M65-M13-2B2C2D3E, RM41-M28-M70-M7-M6-M14-8A2B1C, RM41-M30-M30-M12-M12-M15-1D, RM41-M30-M30-M12-M12-M15-1E, RM41-M30-M30-M12-M15-M15-1C, RM41-M30-M30-M12-M15-M15-1C/RMM-ASAFS-A30, RM41-M30-M30-M12-M15-M15-1D, RM41-M30-M30-M12-M15-M15-1E, RM41-M30-M54-M11-M17-M15-2B1C2D, RM41-M30-M63.5-M11-M12.7-M15-1C2D2E, RM41-M38-M102-M12-M14-M19-1D, RM41-M40-M16-M7.2-M8.6-M20-2B3C2D1E, RM41-M40-M16-M7-M8.5-M20-2B3C2D1E, RM41-M40-M80-M8-M15-M15-2B1C2D1E, RM41-M40-M89-M9-M11.5-M20-2B3C2D2E, RM41-M48-M101.5-M13-M16.5-M19.5-2C1D2E, RM41-M50-M35-M16-M16-M25-12C12D12E, RM41-M50-M35-M16-M16-M25-1C2D2E, RM41-M50-M35-M16-M16-M25-2C3D3E, RM41-M50-M35-M16-M16-M25-4C4D4E, RM41-M50-M50-M11-M25-M25-1C, RM41-M50-M50-M11-M25-M25-1C/RMM-ASCF-50-50-.5-11-25-25, RM41-M50-M50-M11-M25-M25-1D, RM41-M50-M50-M11-M25-M25-1D/RMM-ASCF-50-50-1.0-11-25-25, RM41-M50-M50-M11-M25-M25-1E, RM41-M50-M50-M11-M25-M25-1E/RMM-ASCF-50-50-2.0-11-25-25, RM41-M55-M55-M42-M27.5-M27.5-1C2D2E, RM41-M55-M55-M42-M27.5-M27.5-4C4D4E, RM41-M60-M127-M30-M22-M30-1C2D2E, RM41-M60-M127-M30-M22-M30-4C4D4E, RM41-M60-M16-M7-M8.5-M30-2B3C2D1E, RM41-M80-M45-M18-M20-M40-1C2D2E, RM41-M80-M45-M18-M20-M40-2C2D2E, RS41-1000-880-260-510-500-1(.0005), RS41-1000-880-260-510-500-1(.001), RS41-1000-880-260-510-500-1(.0015), RS41-1000-880-260-510-500-1(.002), RS41-1000-880-260-510-500-1(.003), RS41-1000-880-260-510-500-1(.005), RS41-1000-880-260-510-500-1C, RS41-1250-4000-406-500-625-2A2B2J2K, RS41-1250-4000-440-375-625-1C2D2E, RS41-1750-700-281-325-875-2A3B2C1D, RS41-2500-3000-785-750-1000-1L, RS41-3500-3500-875-812-1000-1J, RS41-3500-3500-875-812-1000-1K, RS41-3500-3500-875-812-1000-1L, RS41-625-1250-344-313-313-2A3B2C1D, RS41-625-1250-344-313-313-2D, RS41-750-1875-410-375-375-3B3C2D, RS41-750-2125-266-1125-375-2A3B2C1D, RS41-750-500-281-250-375-2J4K, RS41-750-750-281-375-375-2J3K, RS41-875-786-250-313-438-4A2B1C1D2E, RS41-M12-M35-M4.5-M10-M6-2A3B2C1D, RS41-M16-M12.3-M4.5-M6-M11.7-2A3B2C1D, RS41-M16-M54-M9-M15-M8-2A3B2C1D, RS41-M19-M50-M8-M14-M9.5-2A3B2C1D, RS41-M22-M40-M4-M7-M4.5-4A2B1C1D, RS41-M25-M50-M10-M40-M12.5-4C2L, RS41-M30-M30-M12-M15-M15-1C, RS41-M30-M30-M12-M15-M15-1D, RS41-M30-M30-M12-M15-M15-1E, RS41-M32-M105-M13-M35-M16-16A, RS41-M34-M105-M13-M31-M17-16A, metal shims, steel shims, stainless steel shims, custom steel shims, custom metal shims
