Style RR00
|

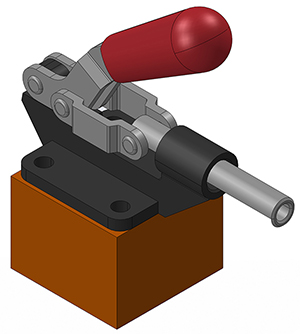

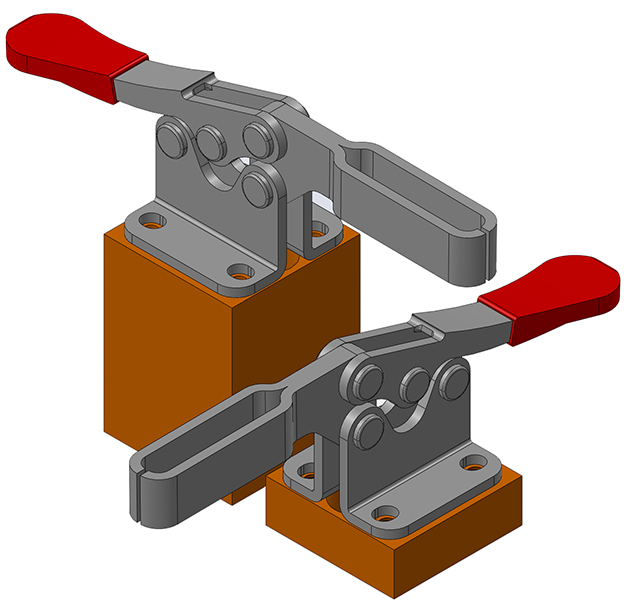

click image to enlarge |
|
 click image to close
|
|
| – | |
| Standard Rentapen Risers Using Rentapen Part Numbers Matched To Customer Clamp Model | |
| Part number examples for ordering risers: | |
| Carr-Lane (CL-1000-PTC): | RR00-312-4000-003-S |
| Des-Sta-Co (802): | RR00-312-3000-015-A |
| Essentra (TC-201): | RR00-312-250-011-3 |
| TE-CO (34069): | RR00-250-1000-004-S |
| All-American (80-020): | RR00-312-1000-016-A |
| Jergens (70240): | RR00-312-2500-019-3 |
| – | |
How to order — RR00-Pre-defined-[H]-[C]-[M]
| (Clamp Vendor) | (Height) | (Clamp Model) | (Material) |
|---|---|---|---|
| H | C | M | |
| – | |||
| Carr-Lane | |||
| De-Sta-Co | S 1018 CRS | ||
| Essentra | Minimum = .250″ | See Spec Sheet | A Aluminum |
| TE-CO | Maximum = 4.000″ | 3 300 Stainless | |
| All-American | |||
| Jergens | |||
| – |
Style RR01
|

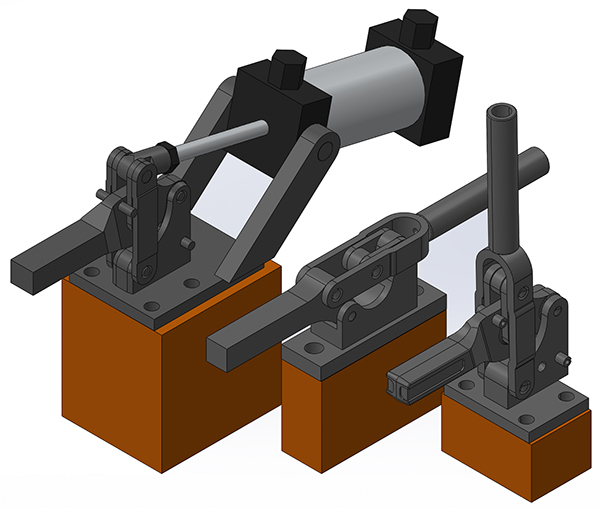

click image to enlarge |
 click image to close
|
| – |
| Standard Rentapen Risers Using Wolverine Part Number In The Rentapen Part Number |
| Part number examples for ordering risers: |
| RR01-A-1905-3000-S |
| RR01-CQ-905A-4000-A |
| RR01-C-305A-250-3 |
| – |
| – |
| – |
| – |
How to order — RR01-[C]-[H]-[M]
| (Clamp Vendor) | (Wolverine Model) | (Des-Sta-Co Model) | (Height) | (Material) |
|---|---|---|---|---|
| C | C | H | M | |
| A-1905 | * | |||
| A-1910 | * | |||
| Wolverine | A-1915 | * | Minimum = .250″ | S 1018 CRS |
| C-305A | 5305 | Maximum = 4.000″ | A Aluminum | |
| Des-Sta-Co | C-310A | 5310 | 3 300 Stainless | |
| CQ-905A | 5905 | |||
| CQ-910A | 5910 | |||
| CQ-915A | 5915 |
For Carr-Lane
Use This Riser
For De-Sta-Co
Use This Riser
For TE-CO
Use This Riser
For Jergens
Use This Riser
CL-1000-PTC
RR00-312-xxx-003
201
RR00-312-xxx-011
34010
RR00-312-xxx-015
70210
RR00-250-xxx-006
CL-1000-VCC
RR00-375-xxx-009
202
RR00-312-xxx-015
34012
RR00-312-xxx-015
70230
RR00-250-xxx-006
CL-1001-PTC
RR00-312-xxx-003
205
RR00-250-xxx-004
34020
RR00-312-xxx-003
70240
RR00-312-xxx-019
CL-100-HVTC
RR00-312-xxx-001
206
RR00-250-xxx-004
34022
RR00-312-xxx-003
70250
RR00-312-xxx-006
CL-100-PC
RR00-312-xxx-012
207
RR00-312-xxx-003
34023
RR00-312-xxx-003
70260
RR00-250-xxx-005
CL-100-SPC
RR00-375-xxx-003
210
RR00-375-xxx-007
34025
RR00-312-xxx-003
70262
RR00-312-xxx-017
CL-101-TC
RR00-312-xxx-015
213
RR00-250-xxx-005
34030
RR00-375-xxx-007
70264
RR00-375-xxx-016
CL-103-TC
RR00-312-xxx-015
215
RR00-312-xxx-016
34035
RR00-375-xxx-007
70270
RR00-375-xxx-010
CL-111-TC
RR00-312-xxx-015
217
RR00-312-xxx-018
34040
RR00-375-xxx-007
70280
RR00-250-xxx-001
CL-113-TC
RR00-312-xxx-015
220
RR00-312-xxx-010
34041
RR00-375-xxx-007
70310
RR00-312-xxx-011
CL-11-TC
RR00-250-xxx-004
225
RR00-312-xxx-006
34069
RR00-250-xxx-004
70320
RR00-312-xxx-011
CL-1500-PPC
RR00-375-xxx-010
227
RR00-312-xxx-008
34081
RR00-312-xxx-020
70330
RR00-312-xxx-015
CL-150-HTC
RR00-250-xxx-004
229
RR00-375-xxx-001
34087
RR00-375-xxx-006
70340
RR00-312-xxx-015
CL-150-SPC
RR00-312-xxx-023
235
RR00-375-xxx-010
34101
RR00-250-xxx-006
70342
RR00-312-xxx-015
CL-150-VTC
RR00-312-xxx-011
237
RR00-375-xxx-011
34105
RR00-250-xxx-006
70350
RR00-312-xxx-003
CL-151-TC
RR00-312-xxx-014
240
RR00-375-xxx-013
34110
RR00-312-xxx-009
70360
RR00-312-xxx-003
CL-152-VTC
RR00-312-xxx-011
245
RR00-375-xxx-014
34120
RR00-312-xxx-006
70365
RR00-312-xxx-003
CL-2000-PTC
RR00-375-xxx-007
247
RR00-375-xxx-007
34130
RR00-375-xxx-015
70380
RR00-312-xxx-003
CL-2001-PTC
RR00-375-xxx-007
305
RR00-250-xxx-004
34305
RR00-250-xxx-006
70390
RR00-312-xxx-003
CL-200-PC
RR00-375-xxx-010
307
RR00-312-xxx-005
34310
RR00-312-xxx-023
70395
RR00-312-xxx-003
CL-200-VTC
RR00-250-xxx-004
309
RR00-375-xxx-008
34320
RR00-375-xxx-010
70420
RR00-375-xxx-007
CL-201-TC
RR00-312-xxx-003
516
RR00-312-xxx-007
34325
RR00-375-xxx-010
70430
RR00-375-xxx-007
CL-203-TC
RR00-312-xxx-003
518
RR00-312-xxx-006
34340
RR00-312-xxx-012
70440
RR00-375-xxx-007
CL-211-TC
RR00-312-xxx-003
601
RR00-250-xxx-006
34350
RR00-375-xxx-010
70450
RR00-375-xxx-007
CL-213-TC
RR00-312-xxx-003
603
RR00-312-xxx-013
34360
RR00-375-xxx-012
70460
RR00-375-xxx-007
CL-21-TC
RR00-312-xxx-020
605
RR00-312-xxx-023
–
–
70470
RR00-375-xxx-007
CL-250-HTC
RR00-250-xxx-004
608
RR00-375-xxx-010
For All-American
Use This Riser
70810
RR00-312-xxx-012
CL-250-SPC
RR00-375-xxx-010
610
RR00-375-xxx-010
80-010
RR00-250-xxx-004
70818
RR00-250-xxx-003
CL-250-VTC
RR00-312-xxx-005
615
RR00-312-xxx-023
80-012
RR00-250-xxx-004
70820
RR00-312-xxx-023
CL-251-TC
RR00-312-xxx-002
620
RR00-375-xxx-010
80-020
RR00-312-xxx-016
70830
RR00-375-xxx-010
CL-252-VTC
RR00-312-xxx-015
802
RR00-312-xxx-015
80-030
RR00-312-xxx-006
70840
RR00-375-xxx-010
CL-253-VTC
RR00-312-xxx-015
803
RR00-312-xxx-013
80-040
RR00-375-xxx-010
70850
RR00-375-xxx-012
CL-255-VTC
RR00-375-xxx-010
807
RR00-312-xxx-003
80-100
RR00-375-xxx-010
72160
RR00-312-xxx-022
CL-260-HTC
RR00-250-xxx-002
810
RR00-375-xxx-007
80-102
RR00-312-xxx-011
72161
RR00-312-xxx-003
CL-275-SPC
RR00-375-xxx-010
812
RR00-312-xxx-011
80-105
RR00-250-xxx-004
72162
RR00-375-xxx-006
CL-285-SPC
RR00-375-xxx-010
816
RR00-250-xxx-006
80-110
RR00-312-xxx-015
CL-300-HTC
RR00-312-xxx-016
6001
RR00-250-xxx-003
80-112
RR00-312-xxx-015
CL-300-HVTC
RR00-375-xxx-002
–
–
80-121
RR00-312-xxx-003
CL-300-PC
RR00-375-xxx-012
For Essentra
Use This Riser
80-123
RR00-312-xxx-003
CL-301-TC
RR00-375-xxx-006
TC-201
RR00-312-xxx-011
80-125
RR00-312-xxx-003
CL-303-TC
RR00-375-xxx-006
TC-202
RR00-312-xxx-015
80-127
RR00-312-xxx-003
CL-311-TC
RR00-375-xxx-006
TC-205
RR00-250-xxx-004
80-132
RR00-375-xxx-007
CL-313-TC
RR00-375-xxx-006
TC-206
RR00-250-xxx-004
80-133
RR00-375-xxx-007
CL-350-HTC
RR00-312-xxx-016
TC-207
RR00-312-xxx-003
80-140
RR00-375-xxx-007
CL-350-VTC
RR00-312-xxx-003
TC-210
RR00-375-xxx-007
80-141
RR00-375-xxx-007
CL-351-TC
RR00-375-xxx-004
TC-213
RR00-250-xxx-005
80-202
RR00-250-xxx-006
CL-352-VTC
RR00-312-xxx-003
TC-215
RR00-312-xxx-016
80-210
RR00-312-xxx-021
CL-353-VTC
RR00-312-xxx-003
TC-217
RR00-312-xxx-018
80-220
RR00-375-xxx-010
CL-400-PTC
RR00-312-xxx-011
TC-225
RR00-312-xxx-006
80-230
RR00-312-xxx-023
CL-450-HTC
RR00-312-xxx-006
TC-227
RR00-312-xxx-008
80-240
RR00-375-xxx-010
CL-450-VTC
RR00-312-xxx-003
TC-229
RR00-375-xxx-001
CL-452-VTC
RR00-312-xxx-003
TC-247
RR00-375-xxx-007
CL-453-VTC
RR00-312-xxx-003
TC-305
RR00-250-xxx-004
CL-500-PTC
RR00-312-xxx-015
TC-518
RR00-312-xxx-006
CL-50-SPC
RR00-250-xxx-006
TC-601
RR00-250-xxx-006
CL-51-SPC
RR00-250-xxx-006
TC-603
RR00-312-xxx-013
CL-51-TC
RR00-250-xxx-004
TC-6001
RR00-250-xxx-003
CL-53-TC
RR00-250-xxx-004
CL-550-AHTC
RR00-375-xxx-005
CL-550-HTC
RR00-375-xxx-010
CL-550-VTC
RR00-375-xxx-007
CL-552-VTC
RR00-375-xxx-007
CL-600-HTC
RR00-375-xxx-014
CL-600-PPC
RR00-250-xxx-006
CL-600-PPC
RR00-250-xxx-006
CL-600-VTC
RR00-312-xxx-010
CL-650-ATC
RR00-375-xxx-007
CL-650-HTC
RR00-375-xxx-014
CL-650-VTC
RR00-375-xxx-007
CL-652-VTC
RR00-375-xxx-007
CL-750-VTC
RR00-375-xxx-007
CL-850-VTC
RR00-375-xxx-007
Part number examples:
RR00-312-3000-003 3″ tall riser for a De-Sta-Co 207 clamp
RR00-250-1500-006 1.5″ tall riser for a Carr Lane Cl-51-SPC clamp
Click image to enlarge
click image to close
click image to close
click image to close
click image to close
| RTC Number | |||||||
|---|---|---|---|---|---|---|---|
| Replace xxx with desired height | A | B | C | D | W | L | Screw |

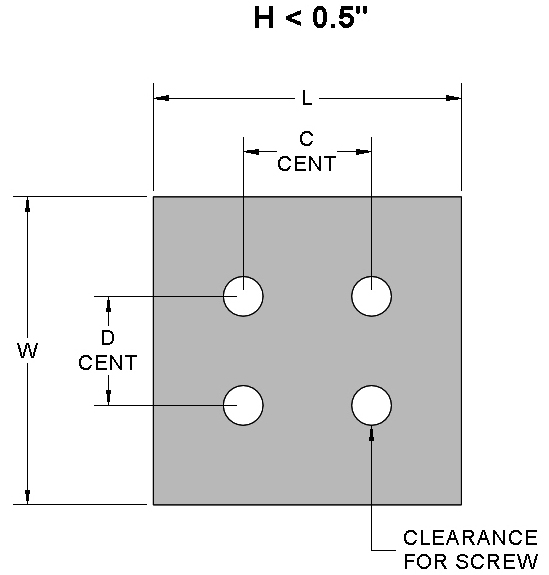

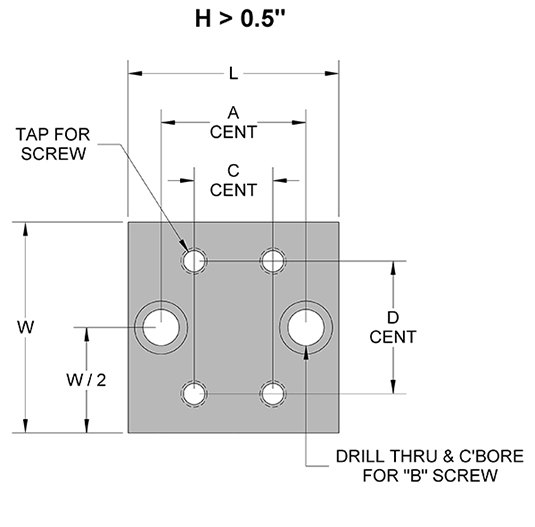

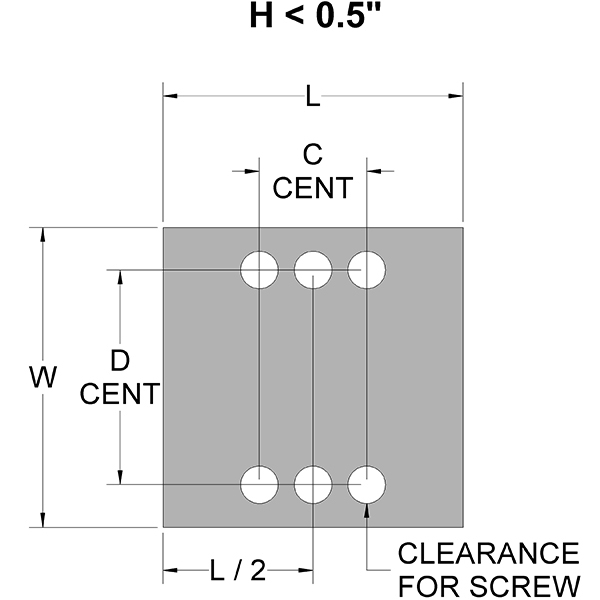

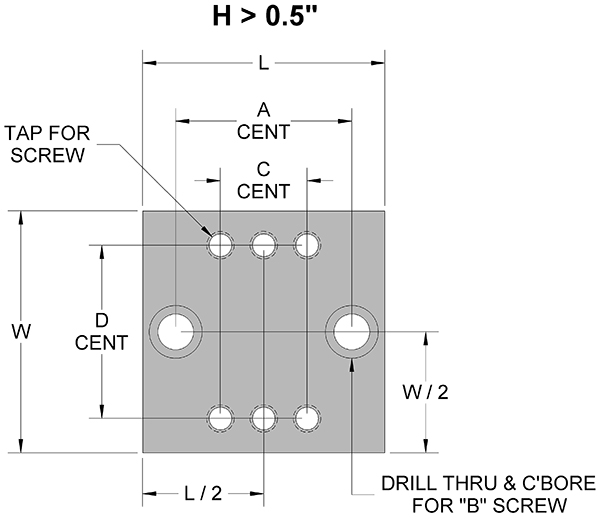

| RR00-250-xxx-001 | 1.000 | 1/4 | .532 | .625 | 1.500 | 1.500 | #10-24 |
| RR00-250-xxx-002 | 1.000 | 1/4 | .531 | .656 | 1.500 | 1.500 | #10-24 |
| RR00-250-xxx-003 | 1.500 | 1/4 | .625 | .625 | 2.000 | 2.000 | #10-24 |
| RR00-250-xxx-004 | 1.000 | 1/4 | .531 | .625 | 1.500 | 1.500 | #8-32 |
| RR00-250-xxx-005 | 1.000 | 1/4 | .531 | .688 | 1.500 | 1.500 | #8-32 |
| RR00-250-xxx-006 | 1.000 | 1/4 | .625 | .625 | 1.500 | 1.500 | #8-32 |
| RR00-312-xxx-001 | 1.375 | 5/16 | .748 | 1.260 | 2.000 | 2.000 | 1/4-20 |
| RR00-312-xxx-002 | 1.375 | 5/16 | .750 | 1.000 | 1.500 | 1.500 | 1/4-20 |
| RR00-312-xxx-003 | 1.375 | 5/16 | .750 | 1.250 | 2.000 | 2.000 | 1/4-20 |
| RR00-312-xxx-005 | 1.375 | 5/16 | .906 | 1.156 | 2.000 | 2.000 | 1/4-20 |
| RR00-312-xxx-006 | .875 | 5/16 | 1.000 | .875 | 1.500 | 1.500 | 1/4-20 |
| RR00-312-xxx-007 | 1.375 | 5/16 | 1.000 | 1.500 | 2.000 | 2.000 | 1/4-20 |
| RR00-312-xxx-008 | 1.375 | 5/16 | 1.031 | 1.230 | 2.000 | 2.000 | 1/4-20 |
| RR00-312-xxx-009 | 0.875 | 5/16 | 1.063 | .875 | 1.500 | 1.500 | 1/4-20 |
| RR00-312-xxx-010 * | 1.375 | 5/16 | 1.125 | 1.313 | 2.000 | 2.000 | 1/4-20 |
| RR00-312-xxx-011 | 0.875 | 5/16 | .625 | .938 | 1.500 | 1.500 | #8-32 |
| RR00-312-xxx-012 * | 1.875 | 5/16 | 1.375 | 1.625 | 2.500 | 2.500 | 1/4-20 |
| RR00-312-xxx-013 | 1.375 | 5/16 | 1.438 | 1.313 | 2.000 | 2.000 | 1/4-20 |
| RR00-312-xxx-014 | .875 | 5/16 | .500 | .875 | 1.500 | 1.500 | #10-24 |
| RR00-312-xxx-015 | .875 | 5/16 | .500 | 1.063 | 1.500 | 1.500 | #10-24 |
| RR00-312-xxx-016 | .875 | 5/16 | 1.031 | .875 | 1.500 | 1.500 | #10-24 |
| RR00-312-xxx-017 | .875 | 5/16 | 1.031 | 1.094 | 1.500 | 1.500 | #10-24 |
| RR00-312-xxx-018 | 1.375 | 5/16 | 1.031 | 1.150 | 2.000 | 2.000 | #10-24 |
| RR00-312-xxx-019 | .875 | 5/16 | 1.063 | .875 | 1.500 | 1.500 | #10-24 |
| RR00-312-xxx-020 | .875 | 5/16 | .531 | .750 | 1.500 | 1.500 | #8-32 |
| RR00-312-xxx-021 | 1.875 | 5/16 | 1.438 | 1.313 | 2.500 | 2.500 | #10-24 |
| RR00-312-xxx-022 | .875 | 5/16 | .625 | .938 | 1.500 | 1.500 | #8-32 |
| RR00-312-xxx-023 | 2.125 | 5/16 | 1.375 | 1.625 | 2.750 | 2.750 | #10-24 |
| RR00-375-xxx-001 | 2.000 | 3/8 | .875 | 2.000 | 2.750 | 2.750 | 5/16-18 |
| RR00-375-xxx-002 * | 2.000 | 3/8 | .984 | 1.969 | 2.750 | 2.750 | 5/16-18 |
| RR00-375-xxx-003 | 1.750 | 3/8 | 1.750 | .875 | 2.500 | 2.500 | #10-24 |
| RR00-375-xxx-004 | 1.750 | 3/8 | 1.250 | 1.438 | 2.500 | 2.500 | 5/16-18 |
| RR00-375-xxx-005 | 1.750 | 3/8 | 1.250 | 1.625 | 2.500 | 2.500 | 5/16-18 |
| RR00-375-xxx-006 | 1.750 | 3/8 | 1.250 | 1.750 | 2.500 | 2.500 | 5/16-18 |
| RR00-375-xxx-007 | 2.000 | 3/8 | 1.250 | 1.781 | 2.750 | 2.750 | 5/16-18 |
| RR00-375-xxx-008 | 2.000 | 3/8 | 1.375 | 1.500 | 2.750 | 2.750 | 5/16-18 |
| RR00-375-xxx-009 | 1.750 | 3/8 | 1.375 | 1.875 | 2.500 | 2.500 | 5/16-18 |
| RR00-375-xxx-010 | 1.750 | 3/8 | 1.375 | 1.875 | 2.500 | 2.500 | 5/16-18 |
| RR00-375-xxx-011 | 1.750 | 3/8 | 1.625 | 1.688 | 2.500 | 2.500 | 5/16-18 |
| RR00-375-xxx-012 | 2.000 | 3/8 | 2.000 | 2.000 | 2.750 | 2.750 | 5/16-18 |
| RR00-375-xxx-013 * | 2.000 | 3/8 | 1.250 | 1.656 | 2.750 | 2.750 | 5/16-18 |
| RR00-375-xxx-014 | 2.000 | 3/8 | 1.625 | 1.625 | 2.750 | 2.750 | 5/16-18 |
| RR00-375-xxx-015 | 2.000 | 3/8 | 1.625 | 1.600 | 2.750 | 2.750 | 1/4-20 |
| RR00-375-xxx-016 * | 1.750 | 3/8 | 1.625 | 1.281 | 2.500 | 2.500 | #10-24 |
| * 6 Hole clamp base | |||||||
clamp risers, steel clamp risers, aluminum clamp risers, stainless steel clamp risers, RR00-312-905-013-A, RR00-312-1000-006-A, RR00-312-1000-013-A, RR00-312-1000-016-A, RR00-312-1000-023-A, RR00-312-1250-003-A, RR00-312-1280-013-A, RR00-312-1343-013-A, RR00-312-1371-003-A, RR00-312-1485-013-A, RR00-312-1500-003-A, RR00-312-1500-007-A, RR00-312-1500-013-A, RR00-312-1500-015-S, RR00-312-1530-013-A, RR00-312-1750-006-A, RR00-312-1780-013-A, RR00-312-2000-006-A, RR00-312-2000-015-S, RR00-312-2000-016-A, RR00-312-2000-018-A, RR00-312-2250-003-A, RR00-312-2250-006-A, RR00-312-2250-013-A, RR00-312-2250-016-A, RR00-312-2375-006-A, RR00-312-2500-006-A, RR00-312-2500-007-A, RR00-312-2500-008-A, RR00-312-2500-013-A, RR00-312-2500-015-S, RR00-312-2500-023-A, RR00-312-2860-003-A, RR00-312-3000-003-A, RR00-312-3000-006-A, RR00-312-313-003-A, RR00-312-3500-003-A, RR00-312-3533-003-A, RR00-312-4000-003-A, RR00-312-4000-015-A, RR00-312-4000-018-A, RR00-312-497-003-A, RR00-312-500-003-A, RR00-312-500-006-A, RR00-312-622-013-A, RR00-312-626-006-A, RR00-312-750-003-A, RR00-312-750-006-A, RR00-312-888-013-A, RR00-375-1000-007-A, RR00-375-1500-011-A, RR00-375-2000-007-A, RR00-375-3000-007-A, RR00-375-3000-010-A, RR00-375-3500-007-A, RR00-375-4000-007-A, RR00-375-7375-010-A, RR00-375-8500-010-A, RR00-375-9500-010-A, RR01-C-305A-2000-A, RR01-C-305A-2500-A, RR01-C-305A-250-A, RR01-C-305A-2750-A, RR01-C-305A-325-A, RR01-C-310A-1000-A, RR01-C-310A-2304-3, RR01-CQ-905A-1000-A, RR01-CQ-905A-1250-A, RR01-CQ-905A-3500-A, RR01-CQ-905A-4000-A, RR01-CQ-905A-500-S, RR01-CQ-910A-2000-S, RR01-CQ915A-2000-S, RR01-CQ915A-2750-S
