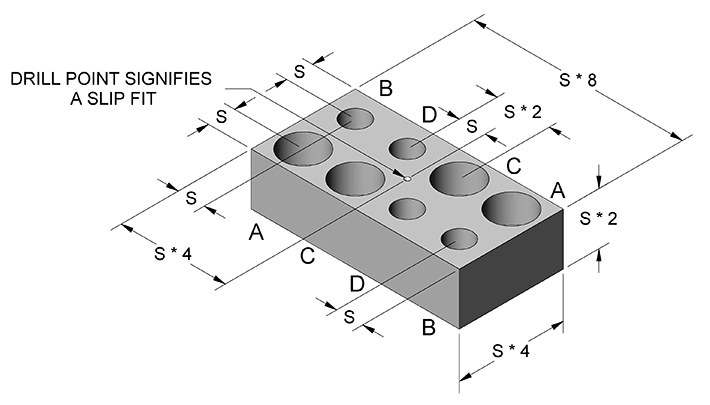

Style RP00
|
click image to enlarge |
|
 click image to close
|
|
| Part number example for ordering a plate | |
| RP00-2500-2000-NPNPS | |
How to order — RP00-[S]-[L]-[A][B][C][D][M]
| (Screw) | (Length) | (Hole) | (Hole) | (Hole) | (Hole) | (Material) |
|---|---|---|---|---|---|---|
| S | L | A*** | B*** | C**** | D**** | M |
| 250 | 2000 | |||||
| 312 | 2500 | |||||
| 375 | 3000 | N C’Bore near side | P Press fit | N C’Bore near side | P Press fit | S Mild Steel |
| 500 | 4000 | D Drill thru | S Slip fit | F C’Bore far side | S Slip fit | A Aluminum |
| M6 | M48 | T Tap thru | X No Hole | D Drill thru | X No Hole | 3 300 Stainless |
| M8 | M64 | X No Hole | T Tap thru | |||
| M10 | M80 | X No Hole | ||||
| M12 | M96 | |||||
| *** If hole “A” is an “X”, then hole “B” must also be an “X” | ||||||
| **** If hole “C” is an “X”, then hole “D” must also be an “X” | ||||||

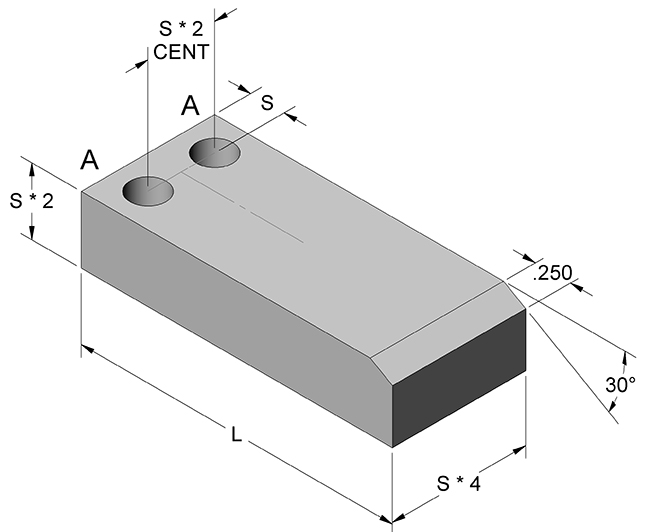

Style RP02
|
click image to enlarge |
|
 click image to close
|
|
| Part number example for ordering a plate | |
| RP02-375-5000-TB | |
How to order — RP02-[S]-[L]-[A][M] |
||||
| (Screw) | (Length) | (Hole) | (Material) | * Note |
|---|---|---|---|---|
| S | L* | A | M | 4140 material is supplied from the mills in an oversized condition. The height and width will not be machined to exact size. If an exact finish is required please add -F to the end of the part number and the part will be machined to nominal dimensions. |
| 250 | 1000 ~ 6500 | |||
| 312 | 1250 ~ 6500 | |||
| 375 | 1500 ~ 6500 | D Drill thru | S 4140PH DCF | |
| 500 | 2000 ~ 6500 | T Tap thru | A Aluminum | |
| M6 | M20 ~ M150 | 3 300 Stainless | ||
| M8 | M25 ~ M150 | |||
| M10 | M30 ~ M150 | |||
| M12 | M35 ~ M150 | |||
| * Length increments are .250 for inch, or 5mm for metric | ||||

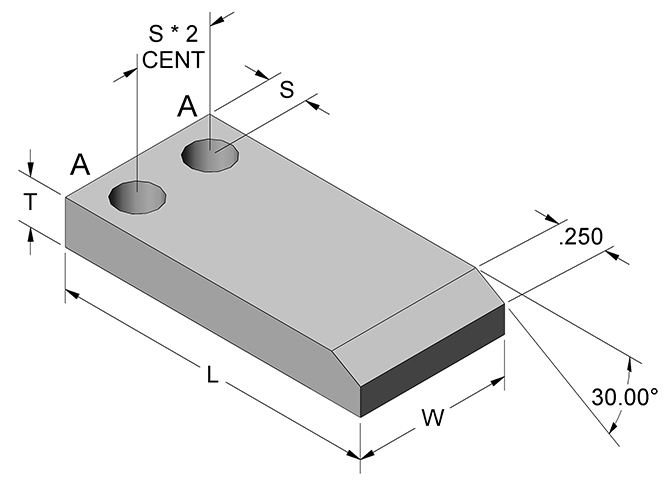

Style RP03
|
click image to enlarge |
|
 click image to close
|
|
| Part number example for ordering a plate | |
| RP03-250-1000-DS | |
How to order — RP03-[S]-[L]-[A][M] |
||||||
| (Screw) | (Length) | (Width) | (Thick) | (Hole) | (Material) | * Note |
|---|---|---|---|---|---|---|
| S | L* | W | T | A | M | 4140 material is supplied from the mills in an oversized condition. The height and width will not be machined to exact size. If an exact finish is required please add -F to the end of the part number and the part will be machined to nominal dimensions. |
| 250 | 1000 ~ 6500 | 1000 | 250 | |||
| 312 | 1250 ~ 6500 | 1250 | 375 | |||
| 375 | 1500 ~ 6500 | 1500 | 375 | D Drill thru | S 4140PH DCF | |
| 500 | 2000 ~ 6500 | 2000 | 500 | T Tap thru | A Aluminum | |
| M6 | M20 ~ M150 | 1000 | 250 | 3 300 Stainless | ||
| M8 | M25 ~ M150 | 1250 | 375 | |||
| M10 | M30 ~ M150 | 1500 | 375 | |||
| M12 | M35 ~ M150 | 2000 | 500 | |||
| * Length increments are .250 for inch, or 5mm for metric | ||||||

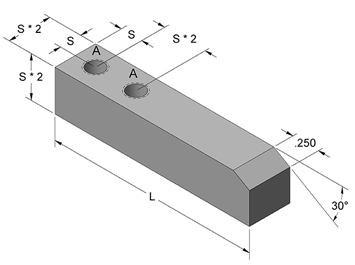

Style RP04
|
click image to enlarge |
|
 click image to close
|
|
| Part number example for ordering a plate | |
| RP04-250-1500-DS | |
How to order — RP04-[S]-[L]-[A][M] |
||||
| (Screw) | (Length) | (Hole) | (Material) | * Note |
|---|---|---|---|---|
| S | L* | A | M | 4140 material is supplied from the mills in an oversized condition. The height and width will not be machined to exact size. If an exact finish is required please add -F to the end of the part number and the part will be machined to nominal dimensions. |
| 250 | 1500 ~ 6500 | |||
| 312 | 1750 ~ 6500 | |||
| 375 | 2000 ~ 6500 | D Drill thru | S 4140PH DCF | |
| 500 | 2500 ~ 6500 | T Tap thru | A Aluminum | |
| M6 | M35 ~ M150 | 3 300 Stainless | ||
| M8 | M45 ~ M150 | |||
| M10 | M50 ~ M150 | |||
| M12 | M60 ~ M150 | |||
| * Length increments are .250 for inch, or 5mm for metric | ||||

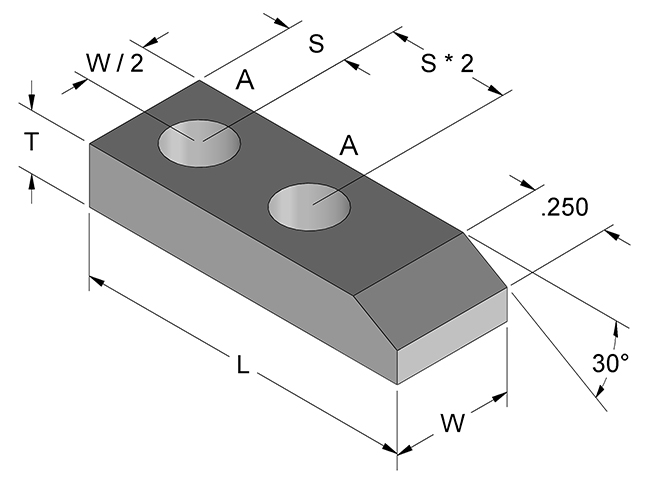

Style RP05
|
click image to enlarge |
|
 click image to close
|
|
| Part number example for ordering a plate | |
| RP03-250-1500-DS | |
How to order — RP05-[S]-[L]-[A][M] |
||||||
| (Screw) | (Length) | (Width) | (Thick) | (Hole) | (Material) | * Note |
|---|---|---|---|---|---|---|
| S | L* | W | T | A | M | 4140 material is supplied from the mills in an oversized condition. The height and width will not be machined to exact size. If an exact finish is required please add -F to the end of the part number and the part will be machined to nominal dimensions. |
| 250 | 1500 ~ 6500 | 500 | 250 | |||
| 312 | 1750 ~ 6500 | 625 | 375 | |||
| 375 | 2000 ~ 6500 | 750 | 375 | D Drill thru | S 4140PH DCF | |
| 500 | 2500 ~ 6500 | 1000 | .500″ | T Tap thru | A Aluminum | |
| M6 | M20 ~ M150 | 500 | .250″ | 3 300 Stainless | ||
| M8 | M25 ~ M150 | 625 | .375″ | |||
| M10 | M30 ~ M150 | 750 | .375″ | |||
| M12 | M35 ~ M150 | 1000 | 0.5″ | |||
| * Length increments are .250 for inch, or 5mm for metric | ||||||
