Clamp Riser Blocks
Clamp Riser are used on work holding fixture where your manual or pneumatic clamps need to be raised off the baseplate. Rentapen has dedicated CNC mills preprogramed and tooled to machine any purchased clamps ( De-Sta-Co, Jergens, Carr-Lane, All-American, Essentra, Wolverine, to name a few) to machine a clamp riser block for your needs. All we need to understand is your Clamp Riser Block mounting requirements to you baseplate, specific clamp mount spec or product number, and the Clamp Riser Block height you need.
Our lead times are typically 3-7days depending on specific requirements, quantity, and workload at time of order.
Features

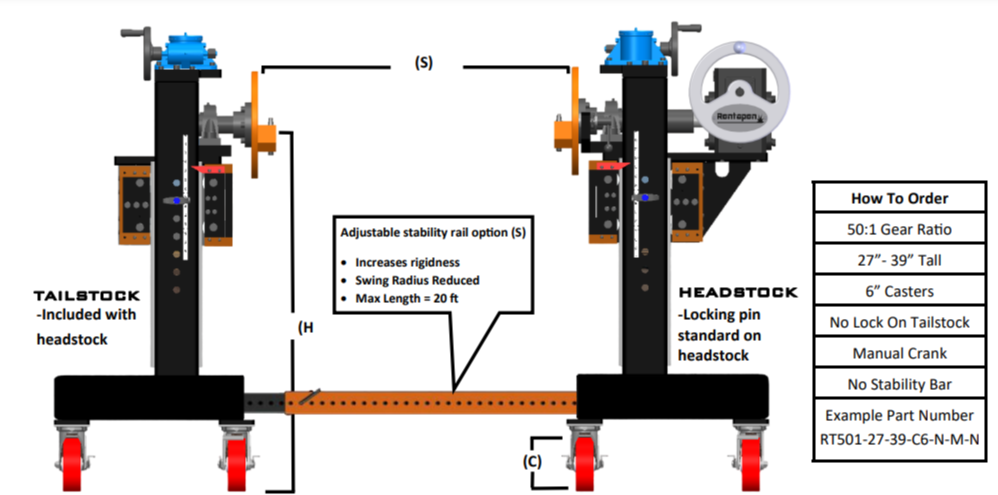

Casters allow for easy movement over most shop floor obstacles and both head and tailstock can be moved to position independently.
Positive locking system on headstock (tailstock Optional) prevents accidental or unwanted rotation.
360° rotation allows for optimum part orientation. Double sided gearbox allows for reposition of hand crank.
Industrial quality gearbox, heavy duty bearings and casters for years of service.

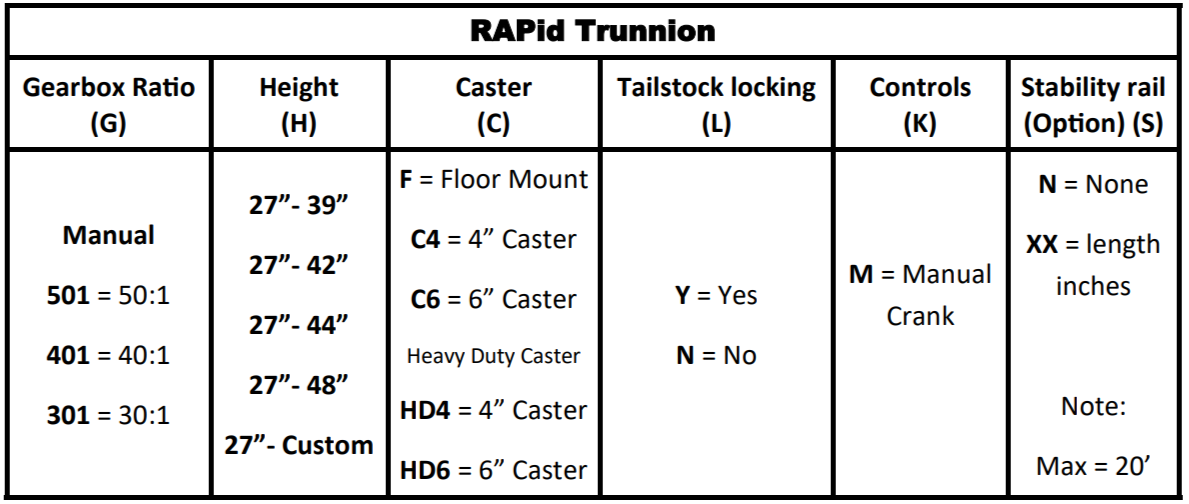

Choose from several available gear ratios, heights, and caster sizes. Even supply drawings for your own custom mounting or designs. Hydraulic and pneumatic motor options available on request.
Benefits
- Adjustable Heights
- Decreased Welder Fatigue
- Increased Productivity
- Improved Weld Access
- Improved Weld Quality
- Weld Cell Flexibility
Rotational Lock Pin
- 8 Positions
- 45 degree increments
- Standard on Headstocks
- Optional on Tailstock
Trunnions
Base Plate
Backbones
Blocks
Plates
Clamp Risers
Shims
Caps
Modify Product Filter Configration
|
Your Part Number is:
|
|||
| Unit Selection |
Metric
Inches
|
||
| Material |
1010 Full Hard
300 Series Stainless Steel
300 Series Stainless Steel
Blue Tempered
Brass
Aluminum
|
||
| Thickness |
1/8 mm
1/4 mm
1/2 mm
1 mm
2 mm
1/64
1/32
1/16
|
||
| Screw size |
|
Minimum: 1.4 Maximum: 24 |
|
| Length - D1 |
|
Minimum: S * 8 Maximum: 292 Increments: 1mm |
|
| Width - D2 |
|
Minimum: S * 4 Maximum: 290 Increments: 1mm | |
|
Your Part Number is:
|
|||
| Customer Specified Thickness | |||
Instructions
The videos and slide shows below will show you Why and When you would design in adjustability with precision shims in our product holding jigs and fixtures.
The videos demonstrate the use of RAPid Blocks™ RB00 and RB02. These blocks have many uses in weld fixtures and other product part holding machines. They are often used for precision adjustment of locating pins in a fixture as demonstrated below.
The PDF’s below show the the 32 different footprints you can create with versatility of RB00 and RB02.
Reviews
There are no reviews yet.
