Frames & Backbones: Welding Fixture Workhorses

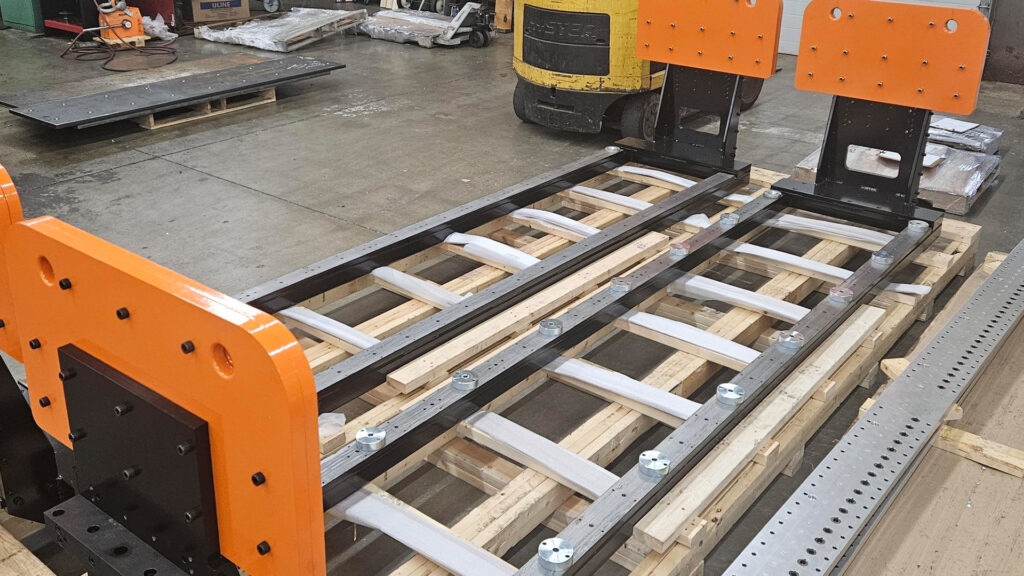

Frames and backbones literally make up the skeleton of a welding fixture. They support the base plate and all mounted components. In addition, they also provide structural reinforcements that run through a fixture to increase stiffness and dimensional stability.
Frames & Backbones – Stiff and Steady

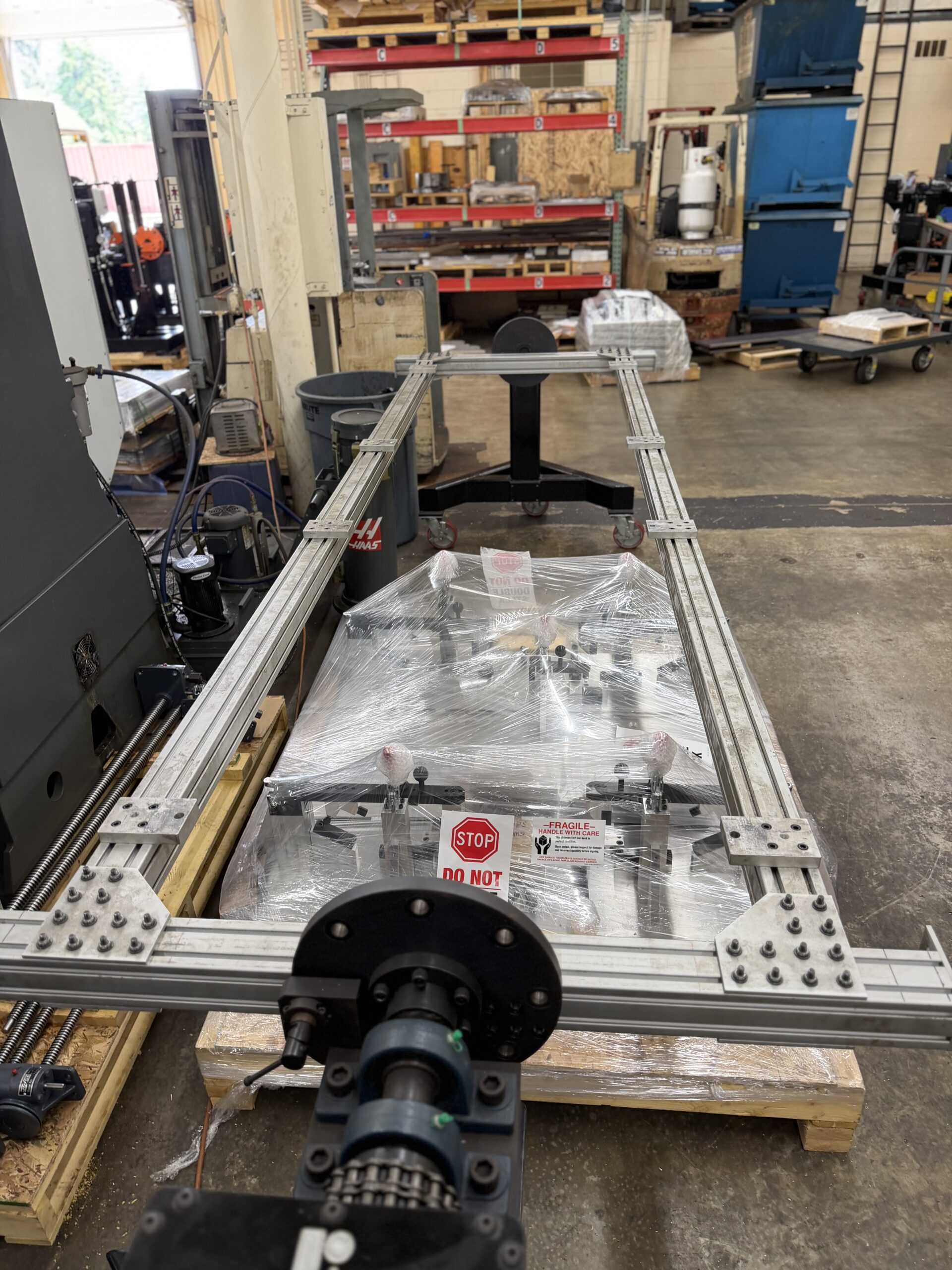

Frames and backbones are typically mounted in a weld cell or are mounted between trunnions or positioners. As weld fixtures change over time, the frames and backbones allow for speed, efficiency and repeatability.
Benefits
Frames and backbones elevate tooling to ergonomic or robotic working heights while providing rigidity reinforcement, load distribution and position accuracy.
Selecting and Configuring Frames & Backbones
For quotes on standard frame or backbone designs, or for designs build to your specifications, please send your CAD file and information below.
