Fixed Height Trunnions
A Quick & Easy Solution For Mounting Your Weld or Assembly Fixtures.
Our RAPid Trunnions™ provide convenient 360° rotation to optimize part orientation. The standard gearbox is double sided to allow for re-positioning of the hand crank and incorporates a positive locking system to prevent any accidental or unwanted rotation. We use heavy duty bearings and casters for great reliability providing years of service. The heavy duty casters allow for easy movement over most shop floor obstacles and allow both headstock and tailstock to be moved to position independently.
RAPid Trunnions™ are also customizable. Choose from several gearbox ratios, heights, and caster sizes. You can even choose not to have casters and mount them right to the floor. To make sure our RAPid Trunnions™ meet your needs, hydraulic and pneumatic motor options are available upon request. In addition, if you supply drawings, mounting plates can be custom made to match your specific application.
RAPid Trunnions
A Quick & Easy Solution For Mounting
Your Weld or Assembly Fixtures.
Features
Casters allow for easy movement over most shop floor obstacles and both head and tailstock can be moved to position independently.
Positive locking system on headstock (tailstock Optional) prevents accidental or unwanted rotation.
360° rotation allows for optimum part orientation. Double sided gearbox allows for reposition of hand crank.
Industrial quality gearbox, heavy duty bearings and casters for years of service.
Choose from several available gear ratios, heights, and caster sizes. Even supply drawings for your own custom mounting or designs. Hydraulic and pneumatic motor options available on request.
Benefits
- Decreased Welder Fatigue
- Increased Productivity
- Improved Weld Access
- Improved Weld Quality
- Weld Cell Flexibility

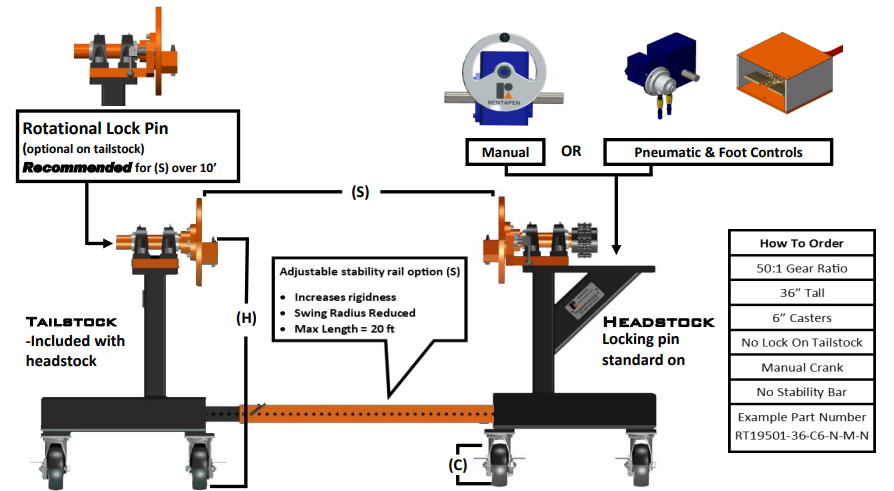

Rotational Lock Pin
- 8 Positions
- 45 degree increments
- Standard on Headstocks
- Optional on Tailstock
Trunnions
Base Plate
Backbones
Blocks
Plates
Clamp Risers
Shims
Caps
Modify Product Filter Configration
|
Your Part Number is: RT19

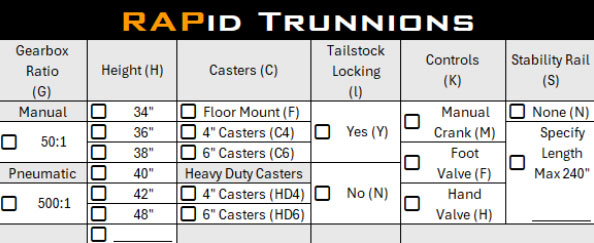

How to order - R[Material] - [S] - [L] - [A] - [B] - [C] - [D] -[M]
|
|||
| Gearbox Ratio | Manual 50:1 Pneumatic 500:1 |
||
| Manual | |||
| Pneumatic Double Reduction | |||
| Height | 34 36 38 40 42 48 |
||
| Caster | F = Floor Mount C4= 4" Cater C6 = 6" Caster Heavy Duty Caster HD4 = 4" Caster HD6 = 6" Caster | ||
| Tailstock locking | Y = Yes N = No | ||
| Controls | M = Manual Crank F = Foot H = Hand |
||
| Stability rail(Option) | N = None XX = feet | ||
| Length | |||
|
Your Part Number is: RT19
How to order - R[Material] - [S] - [L] - [A] - [B] - [C] - [D] -[M]
|
|||
| Customer Specified Thickness | |||
