Base Plate

Base Plate are used for positioning and locating Tooling Components and Dies. Adjustment shims are used to fine-tune the location of your tooling components. (learn more) Die-sharpening shims are placed behind the shim when the face of the die is machined down to sharpen it. Keeping the surface of the die in the precise same location during the stamping, cutting, or forming process.

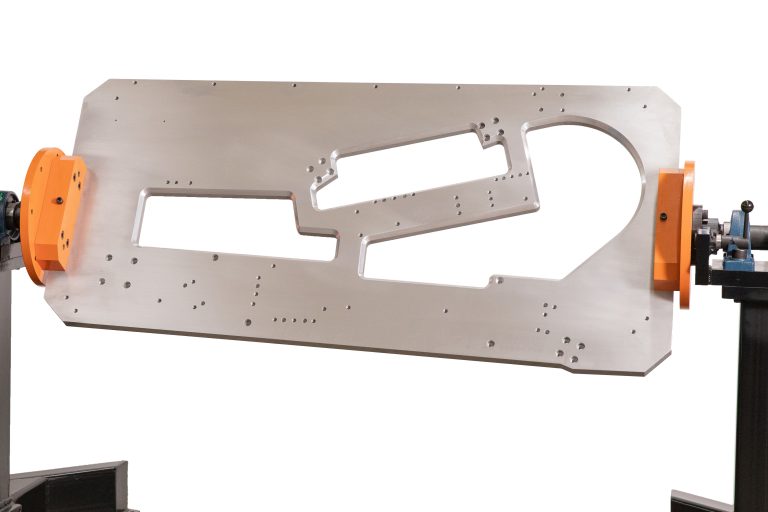

Baeplate Mounted on Trunnion

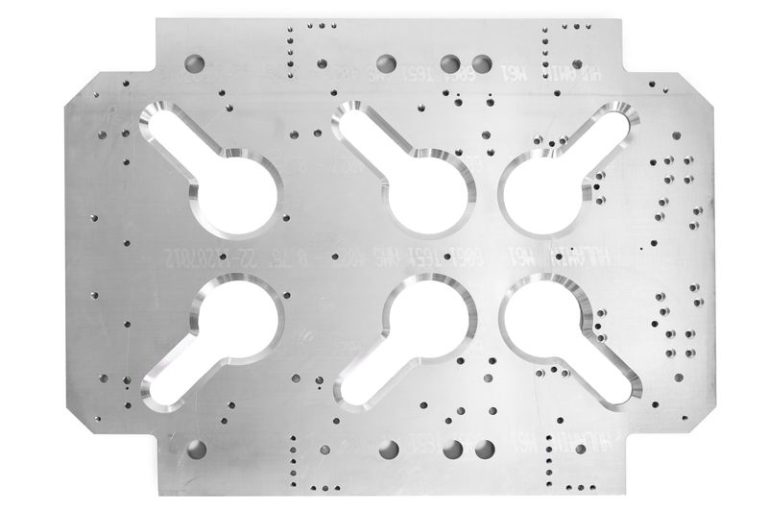

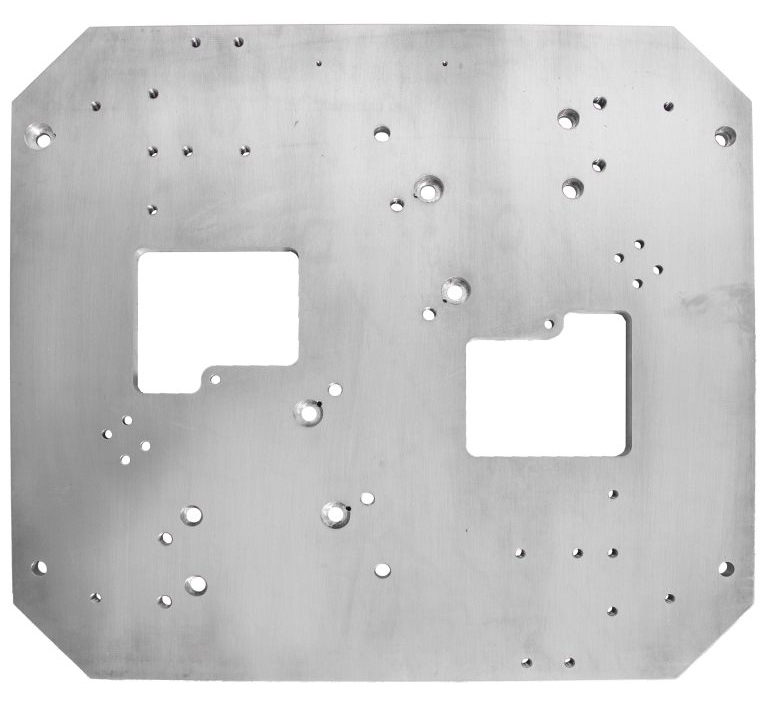

Baseplate
baseplate

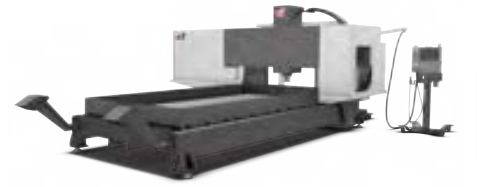

HAAS GM-2 Gantry Mill

  • Fixture and Jig Baseplates
  • Subplates
  • Custom Requirements

An evolution of our gantry router platform, the GM-2 Gantry Mill is a large-frame milling machine capable of seriousmetal removal. Below is a comparison of features that differentiate the GM-2 (gantry mill) from the GR-712 (gantry router).

Gantry Mill Design Improvements:

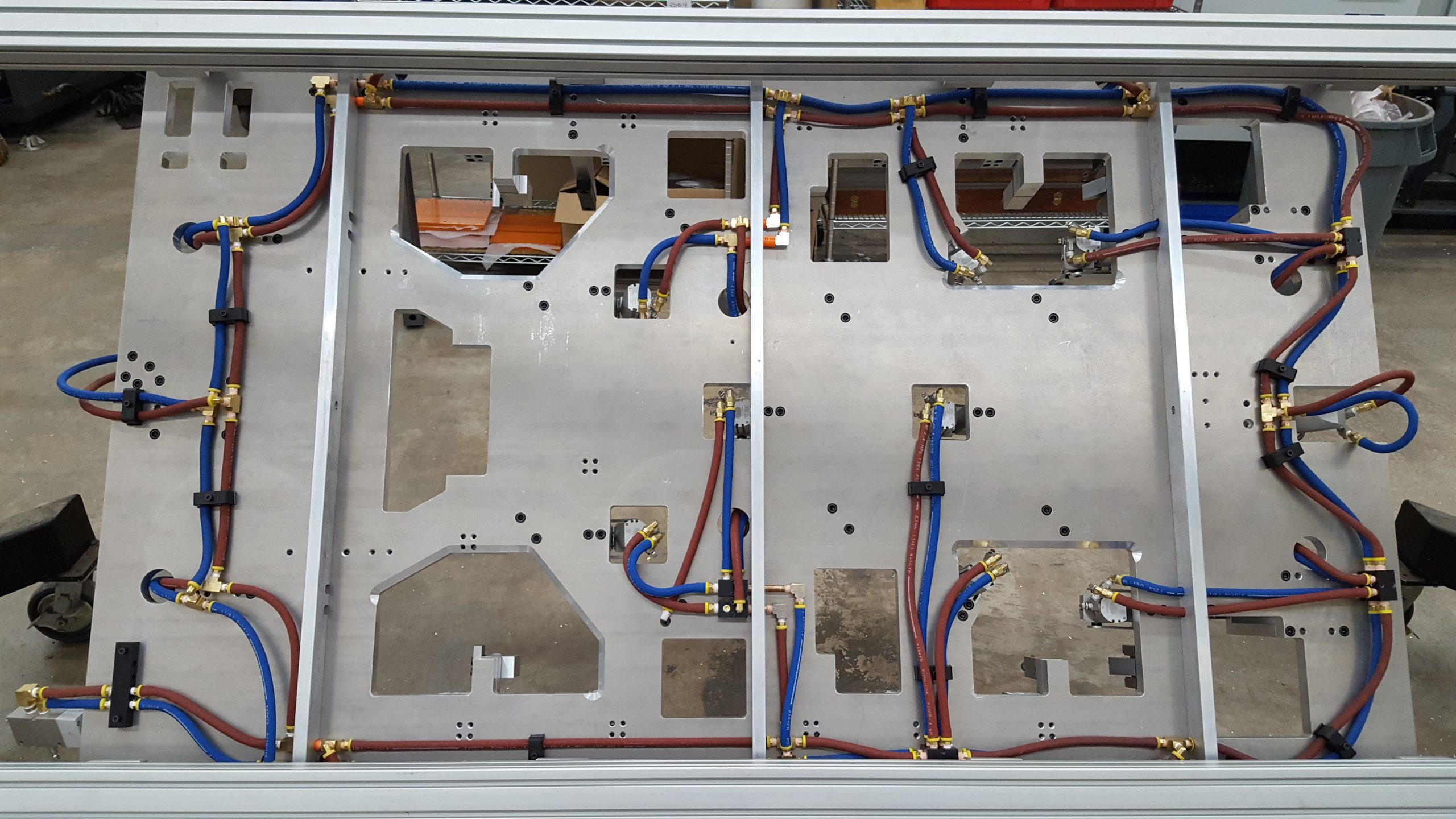

20190320_144851

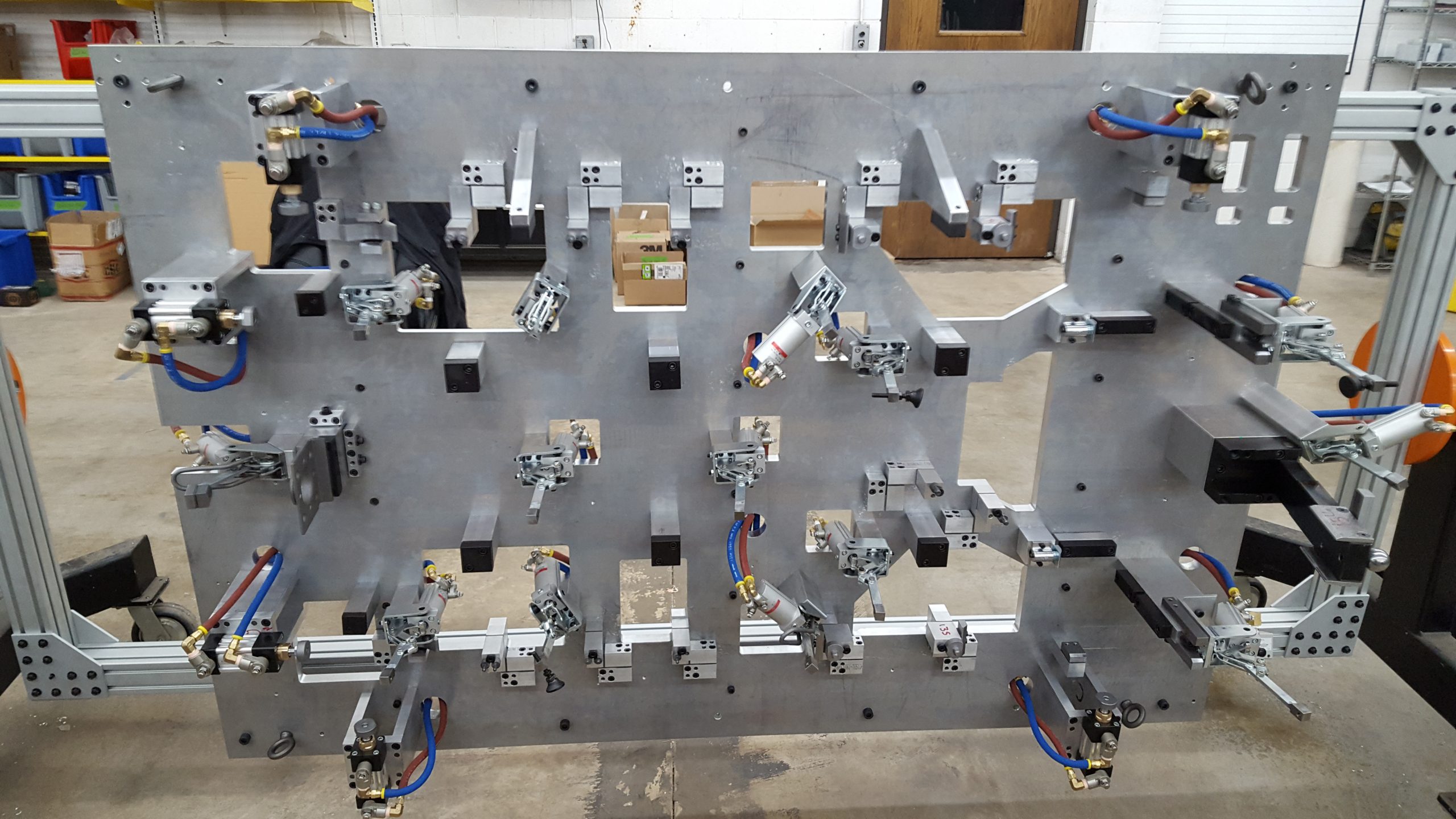

20190320_145051

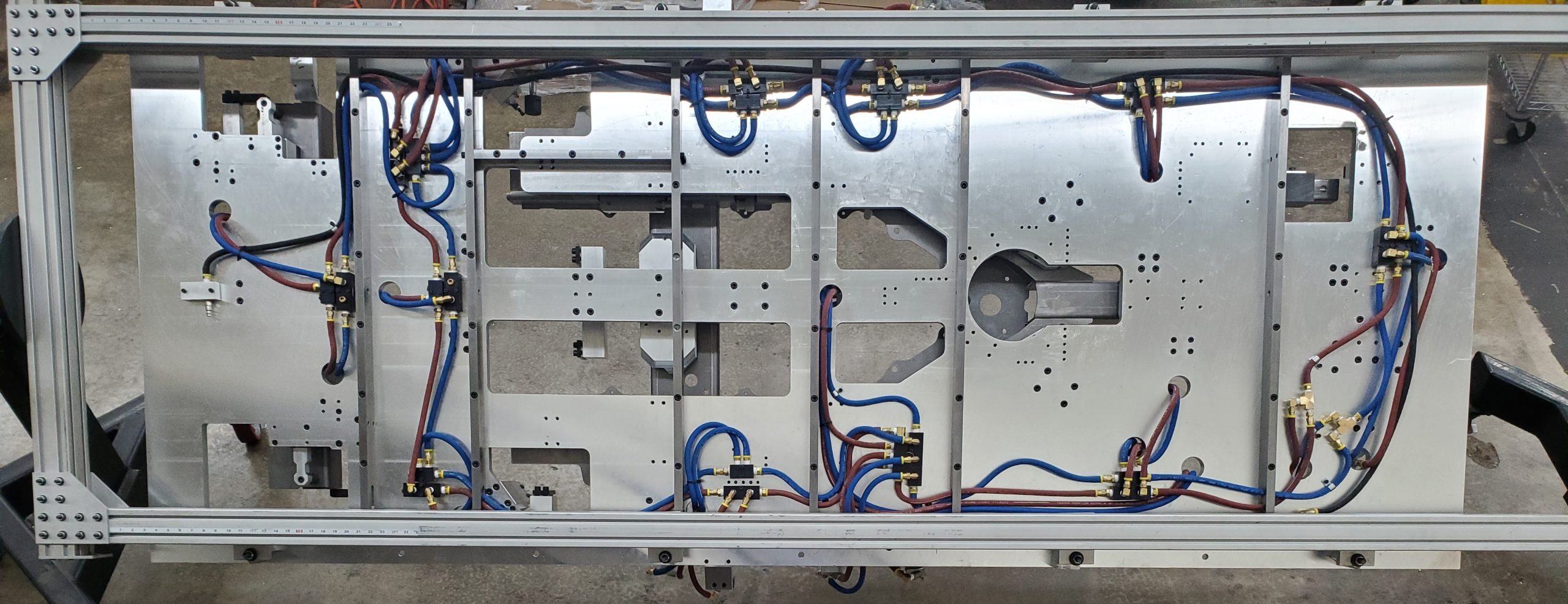

20230616_093350

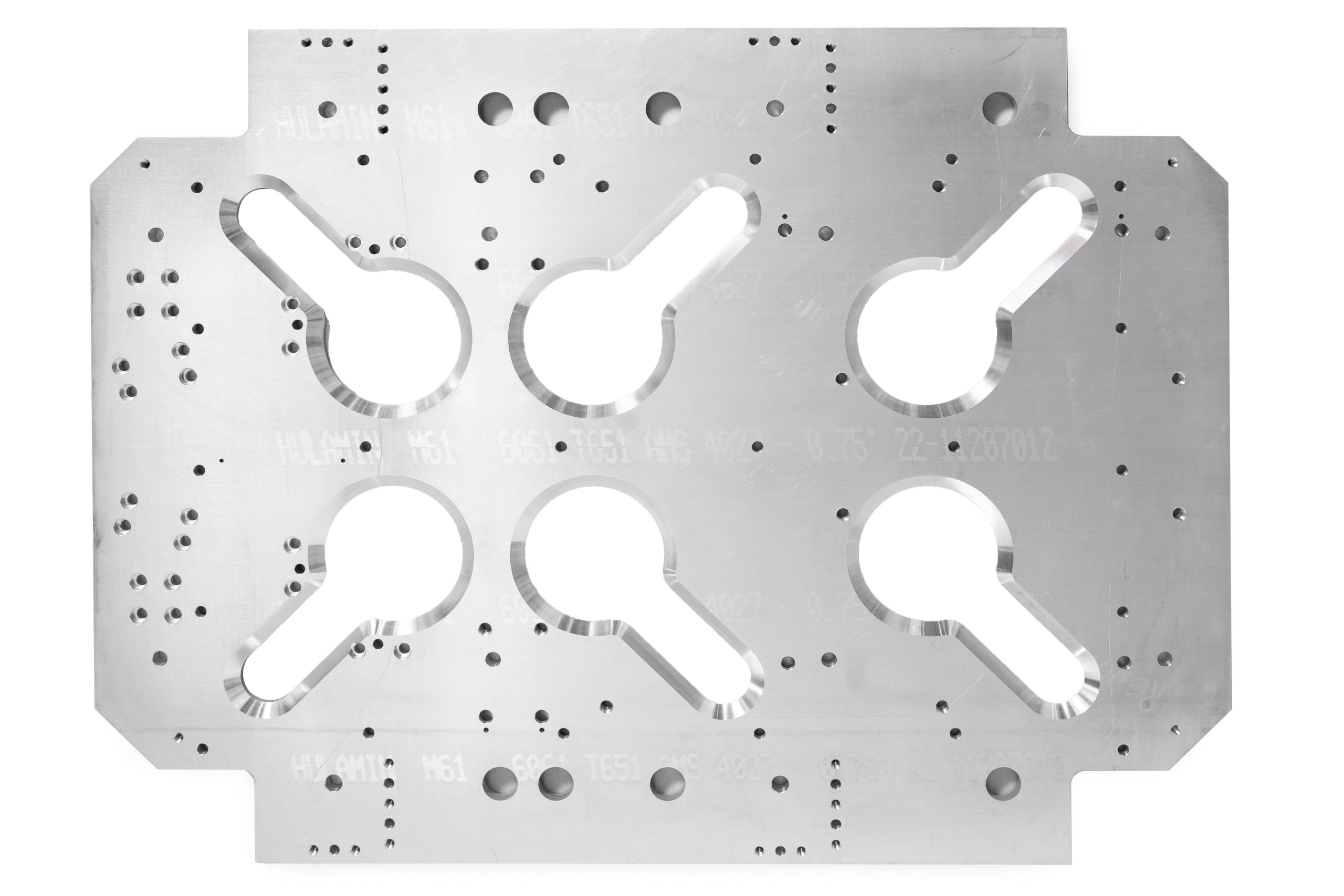

BCAM1023

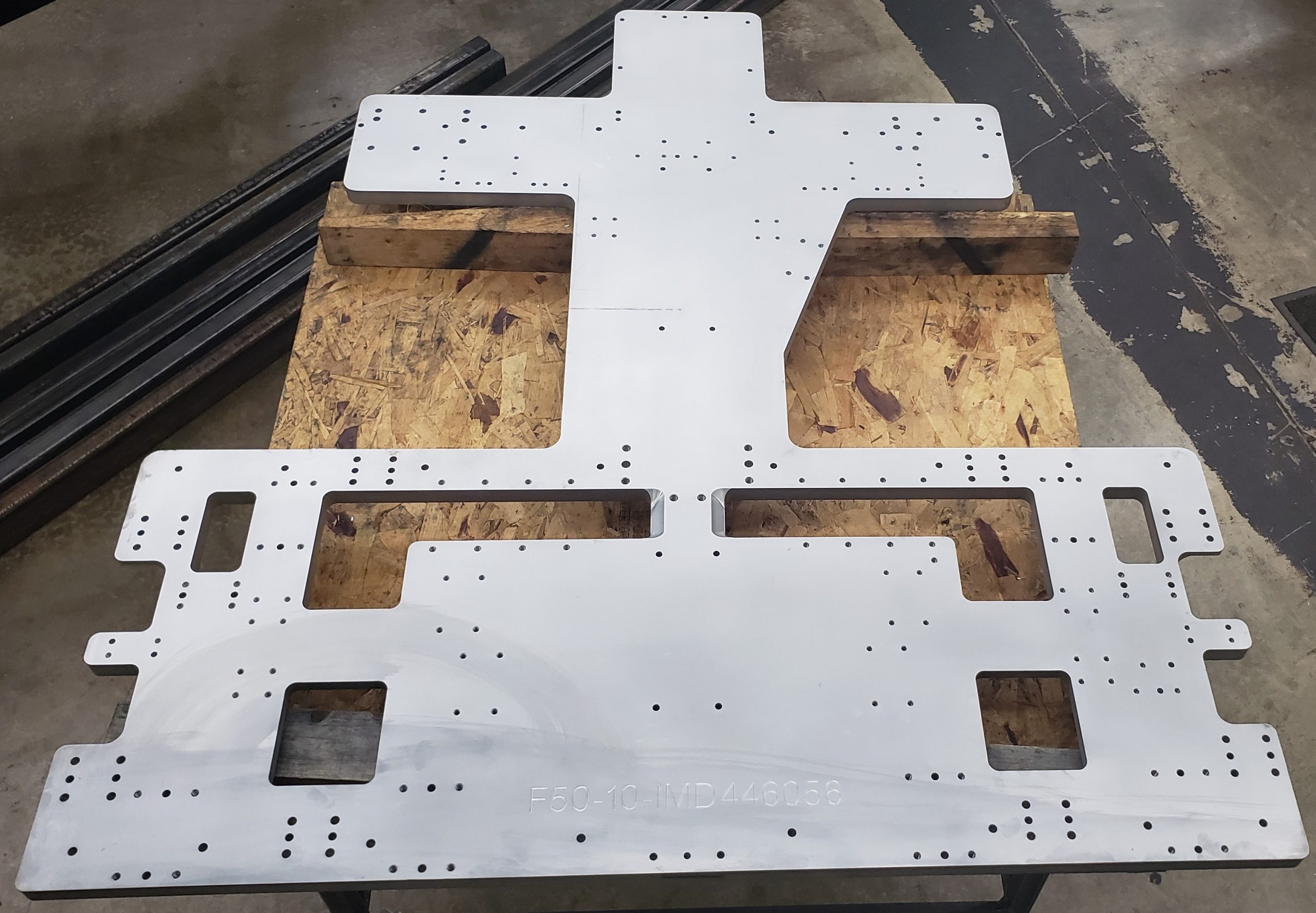

JD - Sub fixture

Rentapn, LLC HASS GM-2 Ganry Mill

Rentapn, LLC HASS GM-2 Ganry Mill

For Quotes send your CAD files or info to: SALES@RENTAPEN.COM

  • RAPid Fixture Components
  • Shims, Shim Packs
  • Laser Profiles
  • Fixture Design and Build Services

Work Holding Fixture and Jig Baseplates

Our Hass GM-2 Gantry mill provides precision baseplates, jig plates, subplates etc. for our internal turn-key design and build services that we offer as well as offering this service to our customer base per their specifications.  Production volumes are not an issue.   Lead times are typically 10 to 15 working days, dependent on material availability, finish specification and workload at time of order.    Just provide a CAD file and PDF print and we will be happy to provide you a quote.
