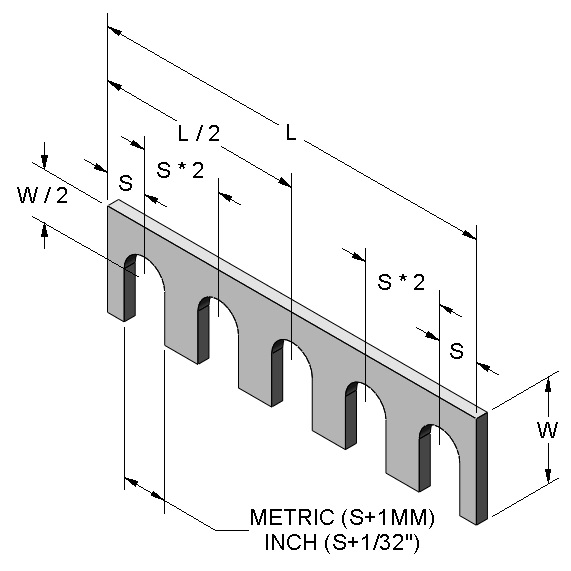

Style 22
Width Defined
How to order — R[Material]22-[S]-[L]-[W]-[Thickness]
*see bottom of page for material and thickness choices
| Metric | ||||
|---|---|---|---|---|
| Minimum | Maximum | Increments | ||
| Screw size | S | 1.6mm | 24mm | |
| Length | L | S * 10 | 292mm | 1mm |
| Width | W | S * 2 | 290mm | 1mm |
| Inch | ||||
| Minimum | Maximum | Increments | ||
| Screw size | S | #6 | 1″ | |
| Length | L | S * 10 | 11.500″ | 1/16″ |
| Width | W | S * 2 | 11.500″ | 1/16″ |
| Individual shim number example | Shim pack number example |
|---|---|
| RM22-250-2500-500-1A | RS22-M6-M60-M12-2A3B2C1D |

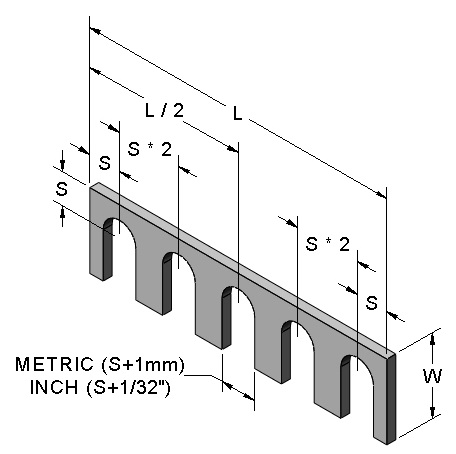

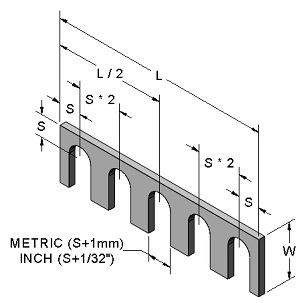

Style 27
Screw Defined
How to order — R[Material]27-[S]-[L]-[W]-[Thickness]
*see bottom of page for material and thickness choices
| Metric | ||||
|---|---|---|---|---|
| Minimum | Maximum | Increments | ||
| Screw size | S | 1.6mm | 24mm | |
| Length | L | S * 10 | 292mm | 1mm |
| Width | W | S * 2 | 290mm | 1mm |
| Inch | ||||
| Minimum | Maximum | Increments | ||
| Screw size | S | #6 | 1″ | |
| Length | L | S * 10 | 11.500″ | 1/16″ |
| Width | W | S * 2 | 11.500″ | 1/16″ |
| Individual shim number example | Shim pack number example |
|---|---|
| RM27-250-2500-500-1A | RS27-M6-M60-M12-2A3B2C1D |

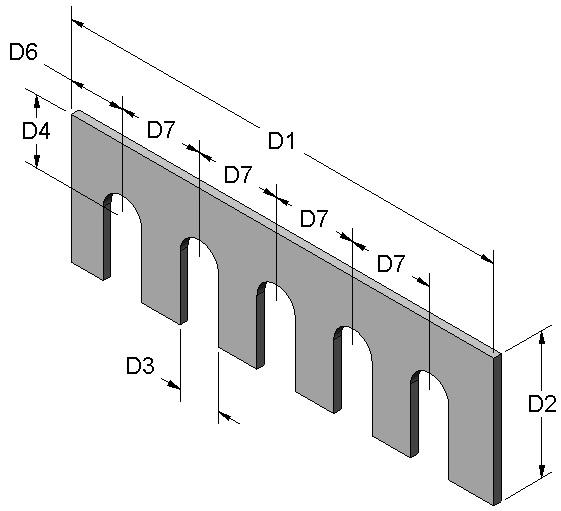

Style 45
User defined
How to order — R[Material]43-[D1]-[D2]-[D3]-[D4]-[D6]-[D7]-[Thickness]
*see bottom of page for material and thickness choices
| Metric | ||||
|---|---|---|---|---|
| Minimum | Maximum | Increments | ||
| Length | D1 | Maximum length 292mm | 0.1 | |
| Width | D2 | Maximum width 292mm | 0.1 | |
| Hole Size | D3 | Minimum of 2X Shim Stock Thickness Between All Shim Features & Edges | 0.1 | |
| Hole Loc. | D4 | 0.1 | ||
| Hole Loc. | D6 | 0.1 | ||
| Hole Loc. | D7 | 0.1 | ||
| Inch | ||||
| Minimum | Maximum | Increments | ||
| Length | D1 | Maximum length 11.500″ | .001″ | |
| Width | D2 | Maximum width 11.500″ | .001″ | |
| Hole Size | D3 | Minimum of 2X Shim Stock Thickness Between All Shim Features & Edges | .001″ | |
| Hole Loc. | D4 | .001″ | ||
| Hole Loc. | D6 | .001″ | ||
| Hole Loc. | D7 | .001″ | ||
| Individual shim number example | Shim pack number example |
|---|---|
| RM45-3000-750-250-250-250-500-1A | RS45-M75-M15-M6-M6-M6-M12-2A3B2C1D |
Material choices S & M
- S – 300 series stainless steel – plain
- M – 1010 full hard steel – oiled, non-plated
| Letter | A | B | C | D | E | J | K | L |
| Nominal | 1/8 mm | 1/4 mm | 1/2 mm | 1 mm | 2 mm | 1/64″ | 1/32″ | 1/16″ |
| 1010 Full Hard (oiled, not plated) | ||||||||
| Actual | .005″ | .010″ | .020″ | .040″ | .079″ | .015″ | .031″ | .062″ |
| Tolerance | ± .0005 | ± .00075 | ± .003 | ± .0004 | ± .005 | ± .002 | ± .0015 | ± .005 |
| 300 Series Stainless Steel (could be slightly magnetic) | ||||||||
| Actual | .005″ | .010″ | .020″ | .042″ | .075″ | .015″ | .031″ | .060″ |
| Tolerance | A | B | C | D | E | J | K | L |
